ACSR930 New

Suitable for Blaser R93 rifle
Configure
Scroll
Description

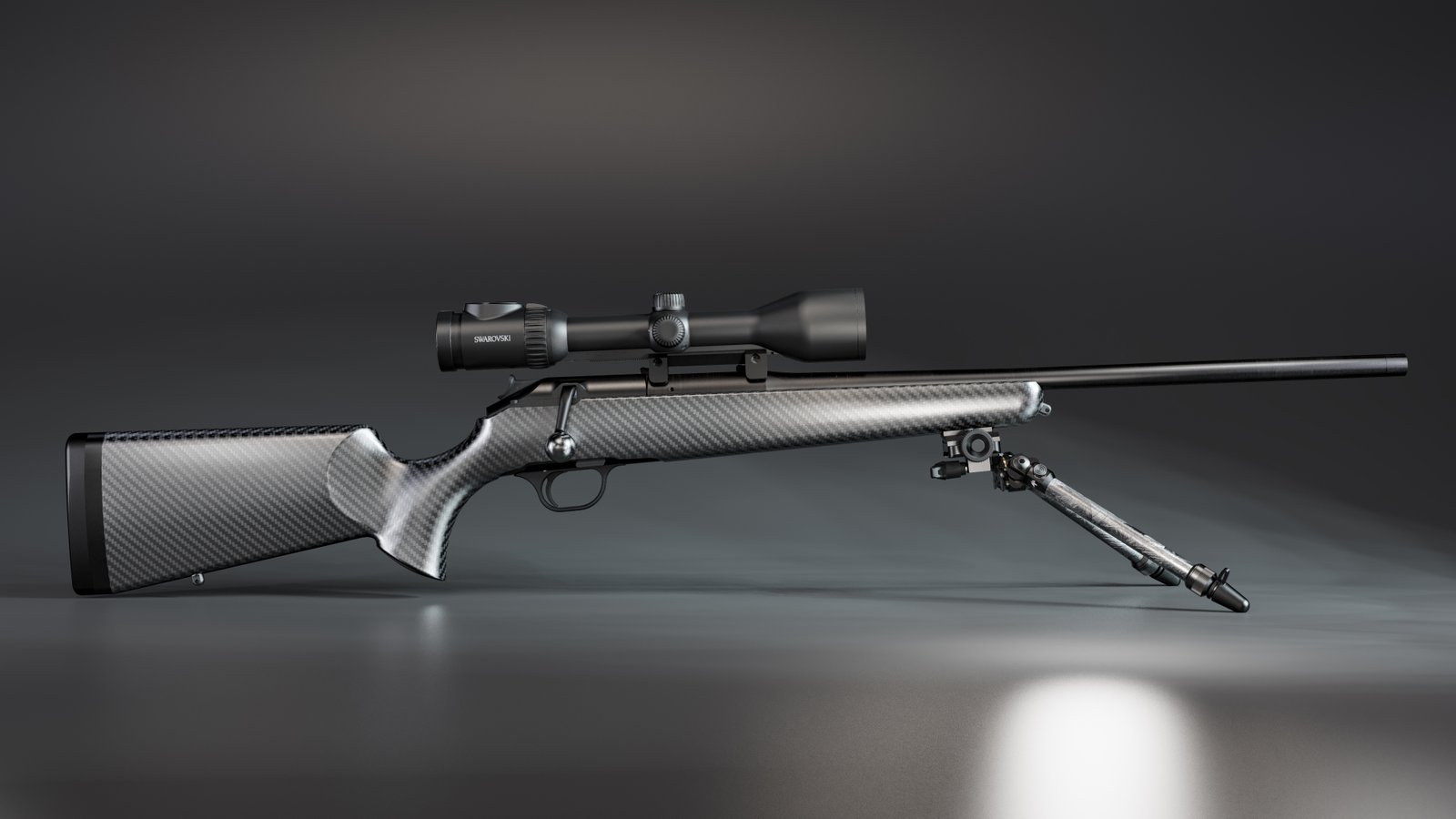

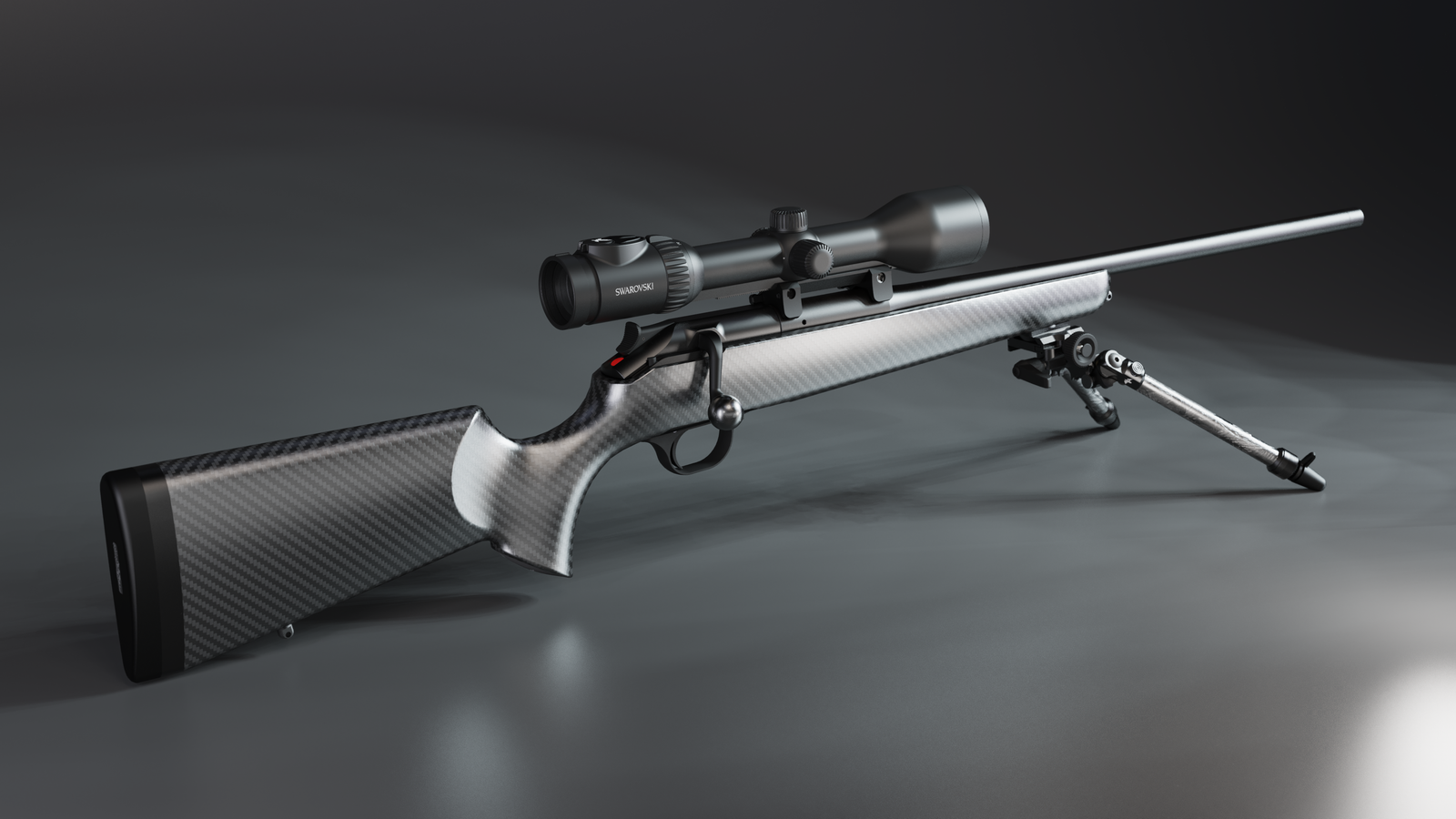

The ACSR930 is a carbon fibre stock designed for the Blaser R93 bolt-action rifle — available in a right-hand version, with a left-hand variant also offered.

This stock features a lightweight, versatile classic design, constructed entirely from carbon fibre. The material delivers superior stiffness and structural rigidity, effectively preventing excessive deformation during the shot. The ACSR930 is ideally suited for alpine and driven hunts, where low weight is critical but precision cannot be compromised.

Weight — 994 grams (including the hybrid system).

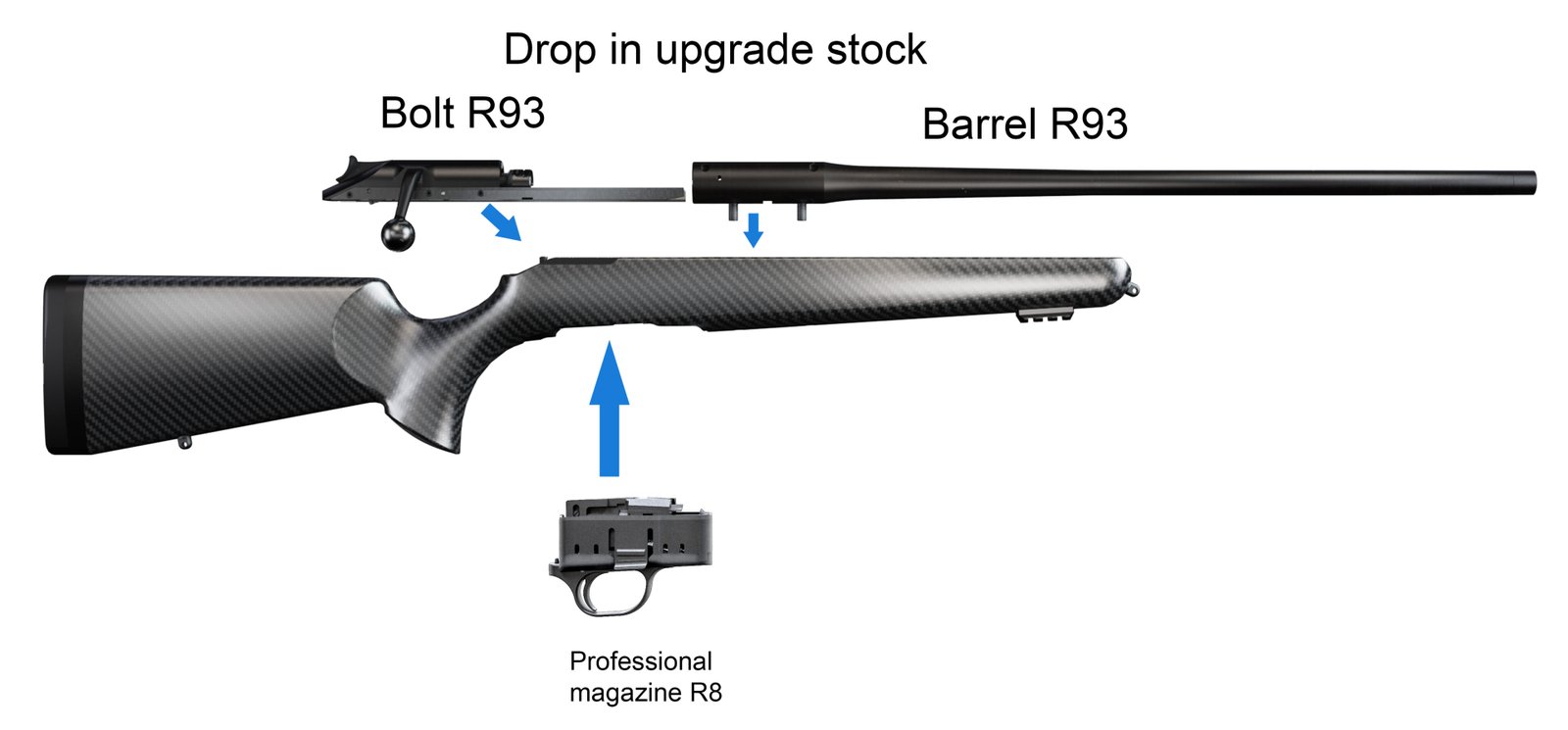

The ACSR930 features a precision-engineered hybrid system that bridges the gap between two legendary rifle platforms. It allows owners of the classic Blaser R93 to modernise their firearm by providing full compatibility with the extensive range of magazines designed for the Blaser R8 — while still enabling you to retain your original R93 barrel and bolt assembly. This is a true drop-in upgrade stock. Please note that to complete the rifle, you will need the following additional components: barrel, bolt with bolt head, and an R8 magazine (the Professional magazine version is fully compatible).

This system offers the perfect upgrade path, combining the familiarity and proven performance of your R93’s core action with the modularity, ergonomics, and accessory ecosystem of the modern R8 platform.

Key Features:

— Direct R93 Compatibility: Accepts your factory R93 barrel and bolt.

— Full R8 Magazine & Chassis Support: Instantly compatible with all R8 magazines and the popular “Success” line of chassis systems.

— Cost-Effective Modernisation: Upgrade your rifle’s capabilities without investing in an entirely new platform.

Trigger System:

The AKILA proprietary single-stage sear block allows you to adjust the trigger pull weight within a range of 200−800 grams. A two-stage trigger TST is available as an option.

Alternative Stock Features (Optional):

— QD sling swivel set: QD cups located on the side of the stock, complete with 6 mm Halder Push-and-Go swivels for 23 mm rifle slings.

— Spartan Precision magnetic adapter for bipods and tripods.

— Harris stud for Harris bipods, or a short Picatinny rail.

— Height-adjustable recoil pad.

Materials & Finish:

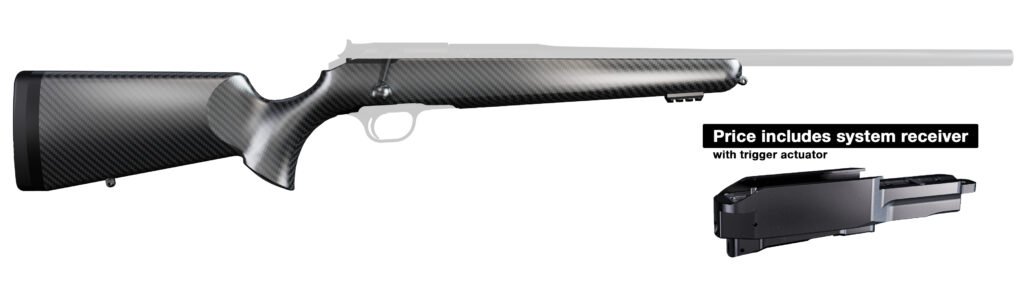

The system part of the ACSR930 is machined from 7075-T6 aluminium billet and finished with a black hard-coat anodized coating. The exterior stock is optionally available in conventional carbon composite or with a Camo texture.

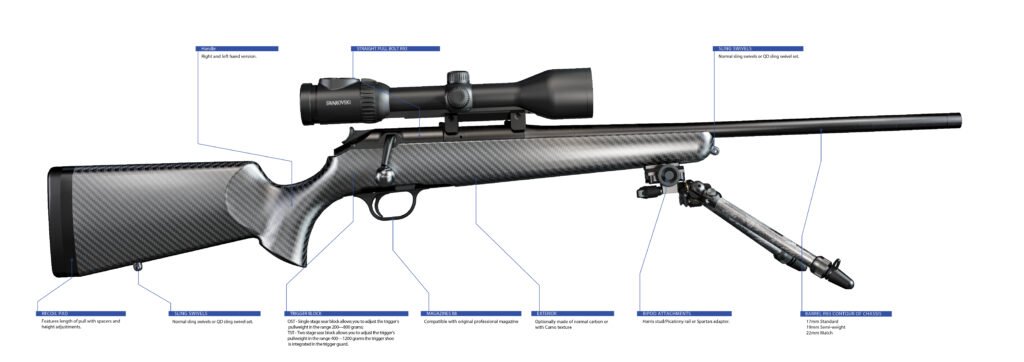

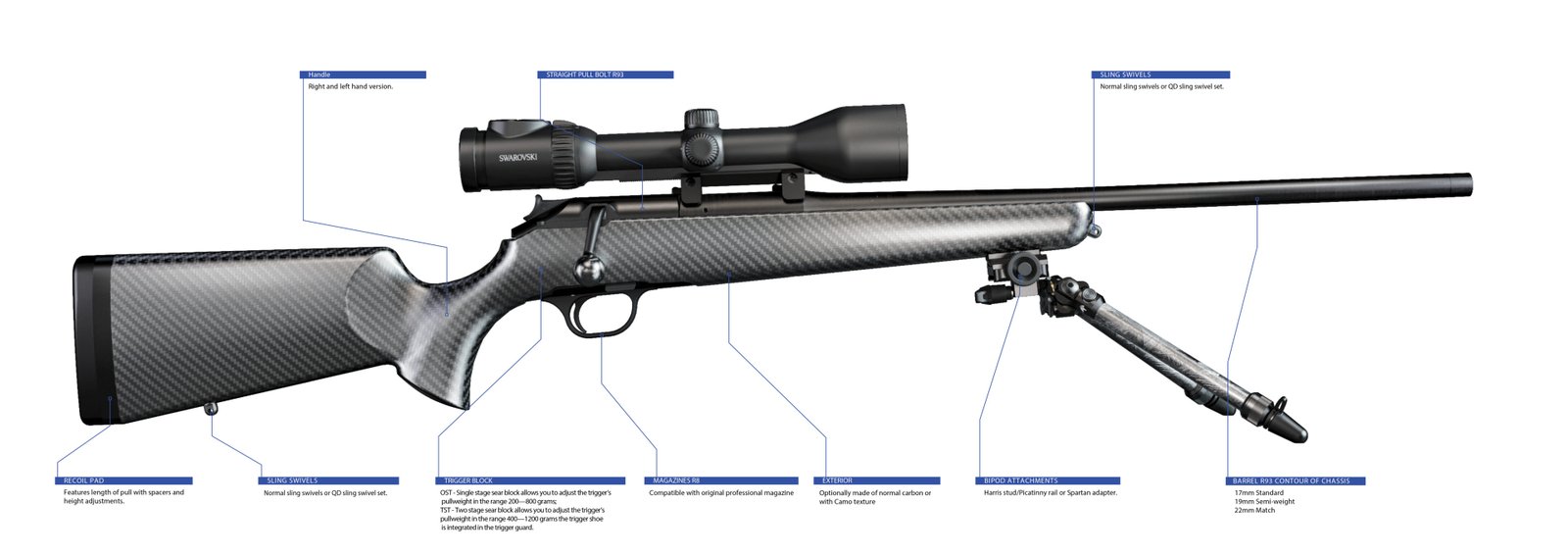

Tech specs
Weight 994—1162 g (1.99—2.32 lb)
Recoil pad height adjustment ± 24 mm
Suitable rifle models Blaser’s R93 rifle
Gallery

Related products

Buy
AKILA GOLDEN TRIGGER In Stock
Buy
AKILA Tripod
Buy
AKILA muzzle brake

Reviews

Login
Forgot password?Register
By submitting form, you agree to our Privacy policy
New account
By submitting form, you agree to our Privacy policy
No products in the cart.
Exterior

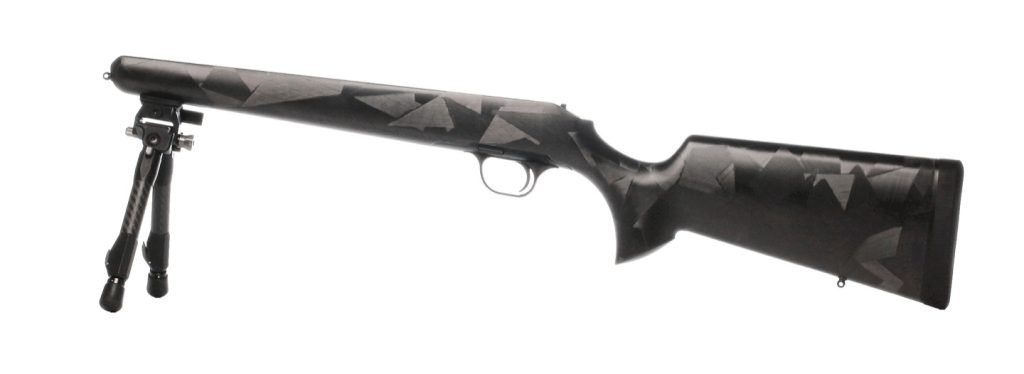

Camo

Camo texture

Exterior

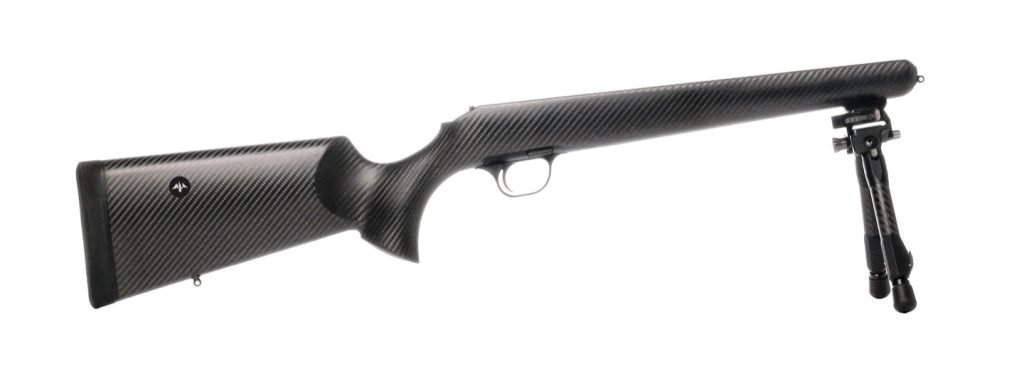

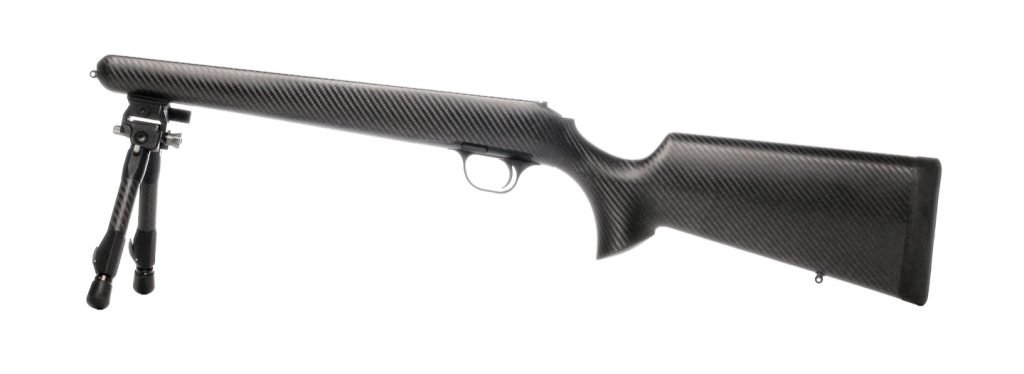

Standard

Standard texture

Barrel profile
17 mm Standard

17mm-standard

Barrel profile
19 mm Semi-weight

19 mm Semi-weight; also 17 mm Standard

Barrel profile
22 mm Match

22 mm Match; also 19 mm Semi-weight and 17 mm Standard

Sling swivels
Normal sling swivels

Suitable for mounting traditional sling swivels.

Sling swivels
QD Sling swivels set

The QD sling swivel sling swivel makes the task of removing the rifle sling quick and easy. This exceptional ease is made possible by the tried-and-tested ball lock pin technology: The bottom end of the bolt on the sling swivel is fitted with automatically locking balls. Releasing the lock merely requires a press of the push button on the pin. This makes it possible to insert and remove the sling swivel as many times as needed while the hunt is on — without any rattle or noise whatsoever. The necessary locating bushings are fitted into the gun stock. The 6 mm QD sling swivel made by Halder Push-and-Go, for 23 mm rifle slings.

Bipod attachments
Harris stub/Picatinny rail

Harris stud for Harris bipods or 3 slot Picatinny rail.

Bipod attachments
Spartan adapter

Compatible with Javelin Bipods, Davros, Sentinel and Ascent tripods

CNC machined from 7075-T7351 aluminium billet with a hard-anodised black finish

Enables use of Javelin Bipod in fixed target and traversable hunting modes

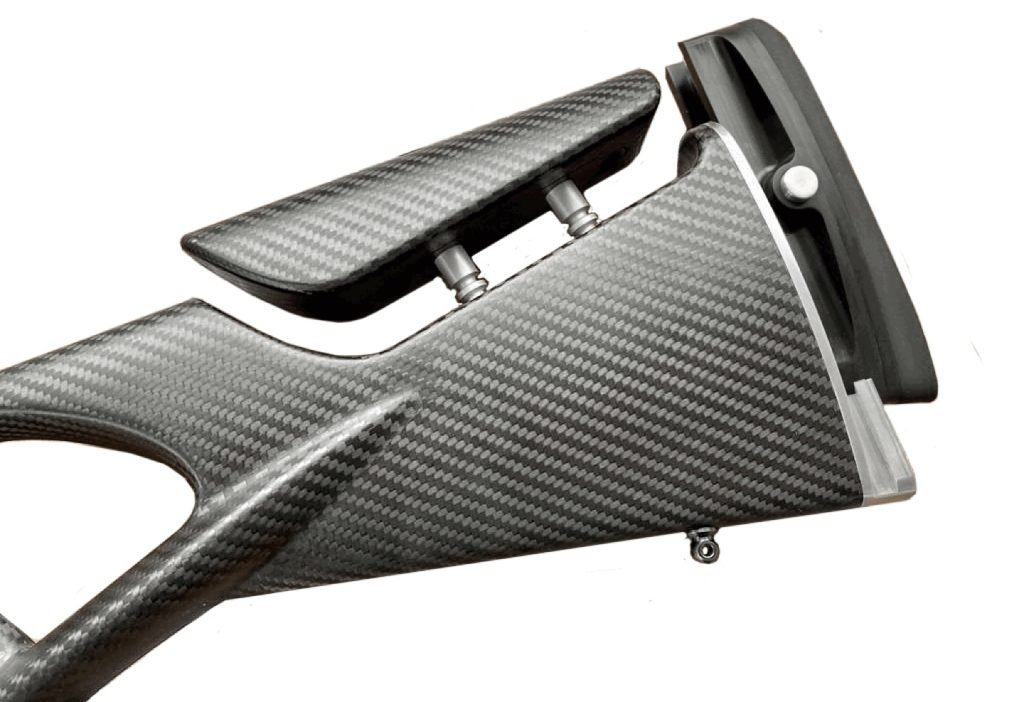

Recoil pad adjustment
Height

Recoil pad height adjustment was designed specially for carbon stocks ACSR80, ACSR82 and ACST30.

Length (vertical) adjustments of +25/-25 mm; +1″/-1″. Pitch: 5 mm; .2″.

Weight: 130 g; 4.6 oz.

Left Hand chassis
Private: TST Triggers for ACSR8
TST Two-Stage Trigger The two-stage sear block allows you to adjust the trigger's pull weight in the range of 500−1200 grams. The trigger shoe is integrated into the trigger guard. The two-stage design offers a distinct advantage in cold winter conditions: even with fingers numbed by low temperatures, the shooter can feel the first stage and locate the trigger's release point without inadvertently firing a shot. This makes it particularly convenient for winter hunting. It is also favored by sport shooters who prefer to rest their finger on the trigger, taking up the first stage without fully pressing through, waiting for the perfect moment to take the shot. Patented Two-Stage original Design. Ideal for: PRS competitors and sport shooters who value precise trigger control.
