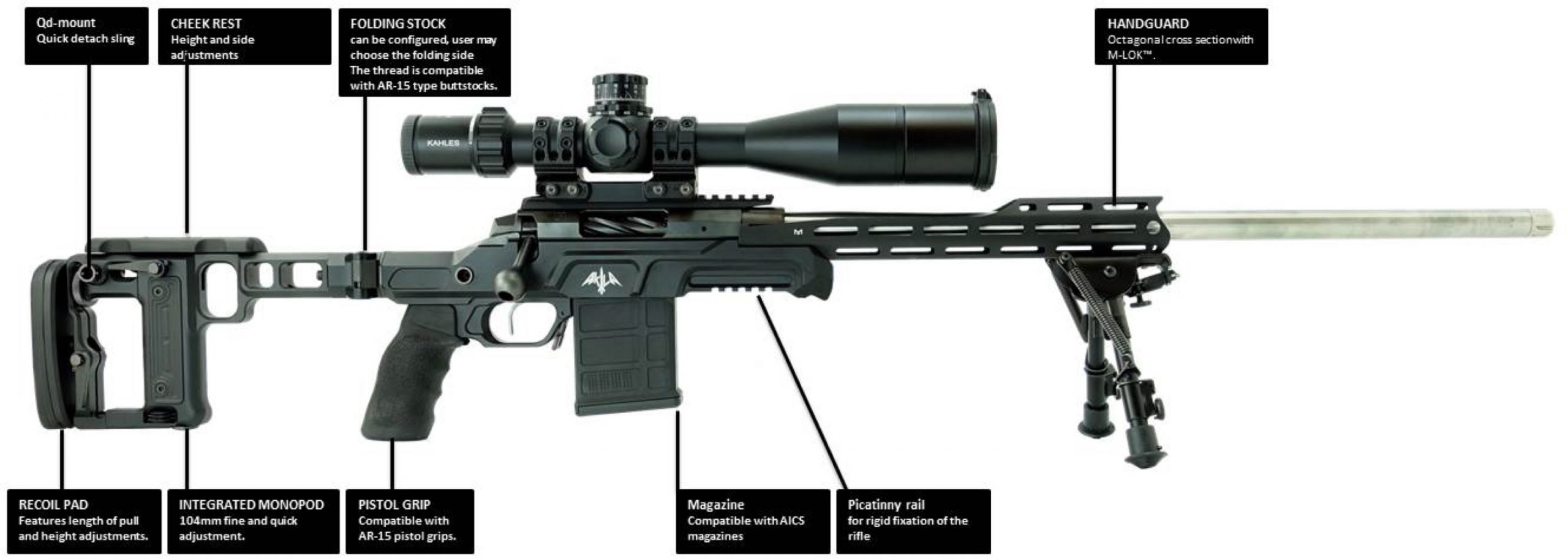

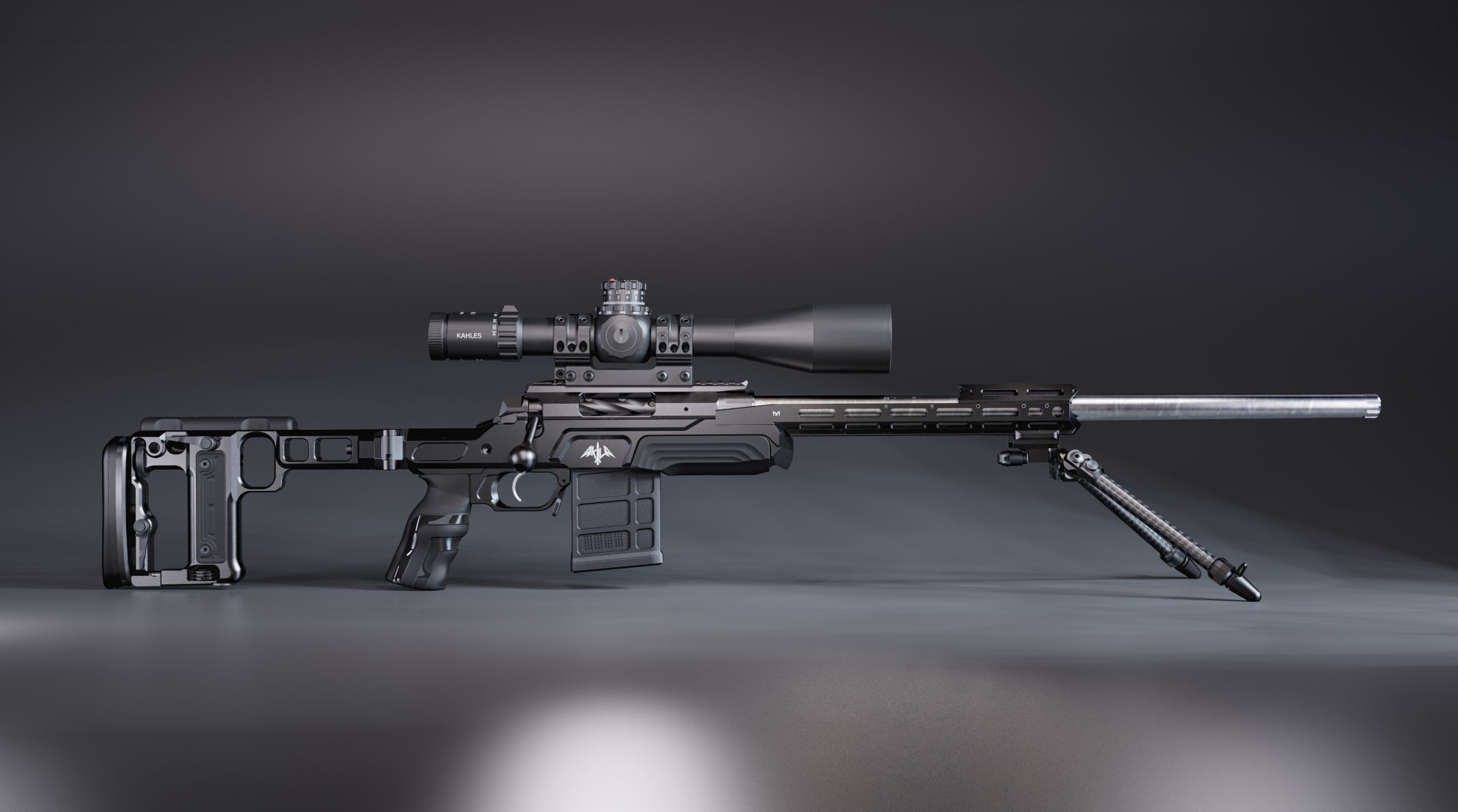

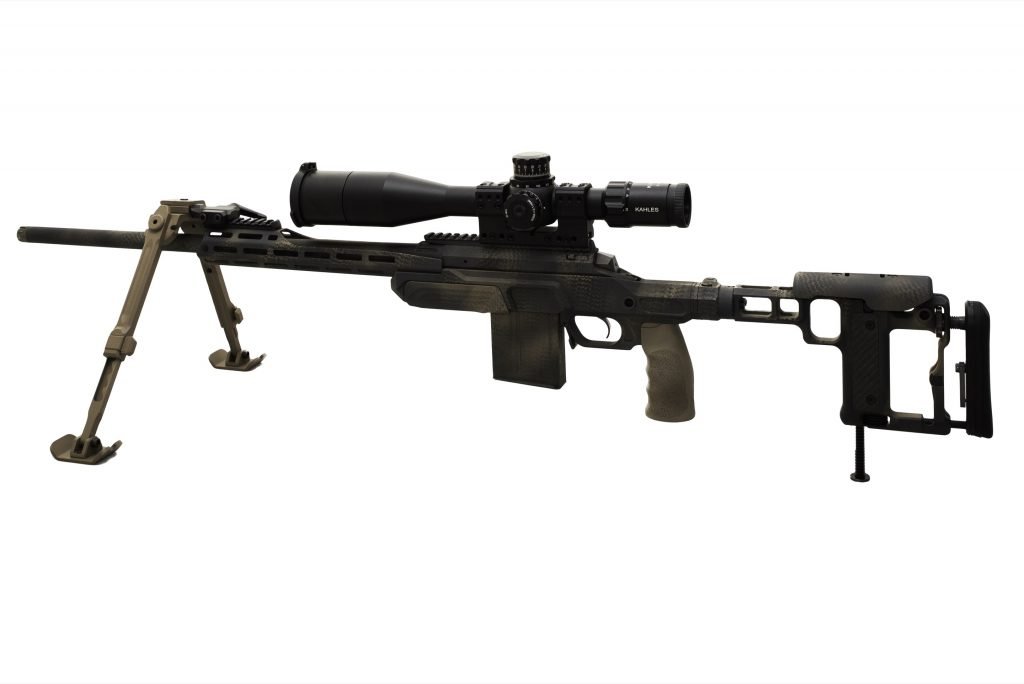

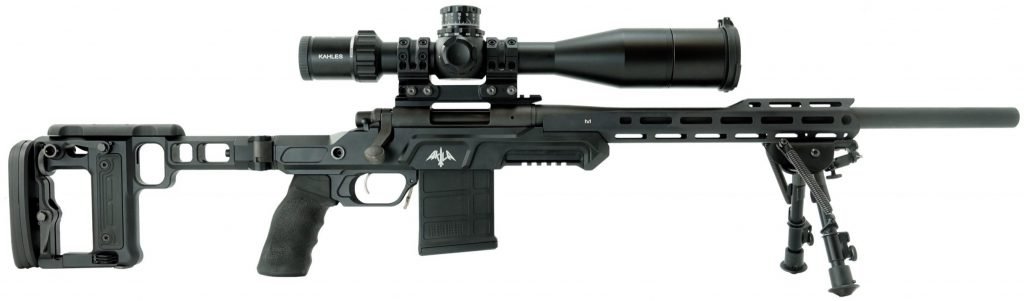

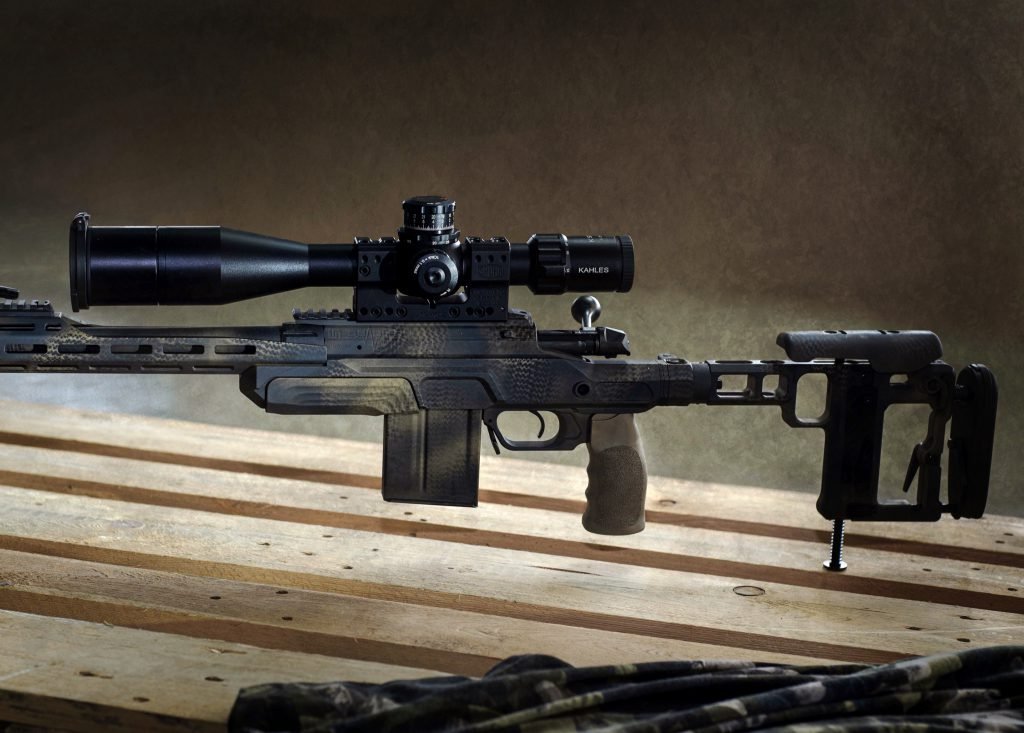

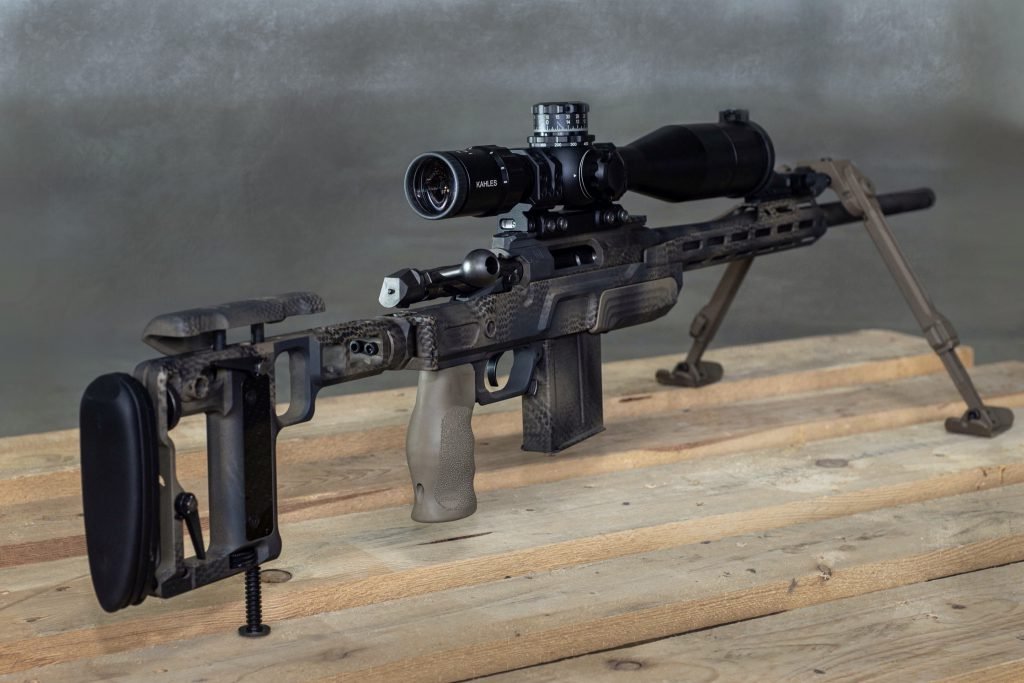

ACSR700 is suitable for Remington’s 700 short action, right-handed version. It is a drop in upgrade chassis.

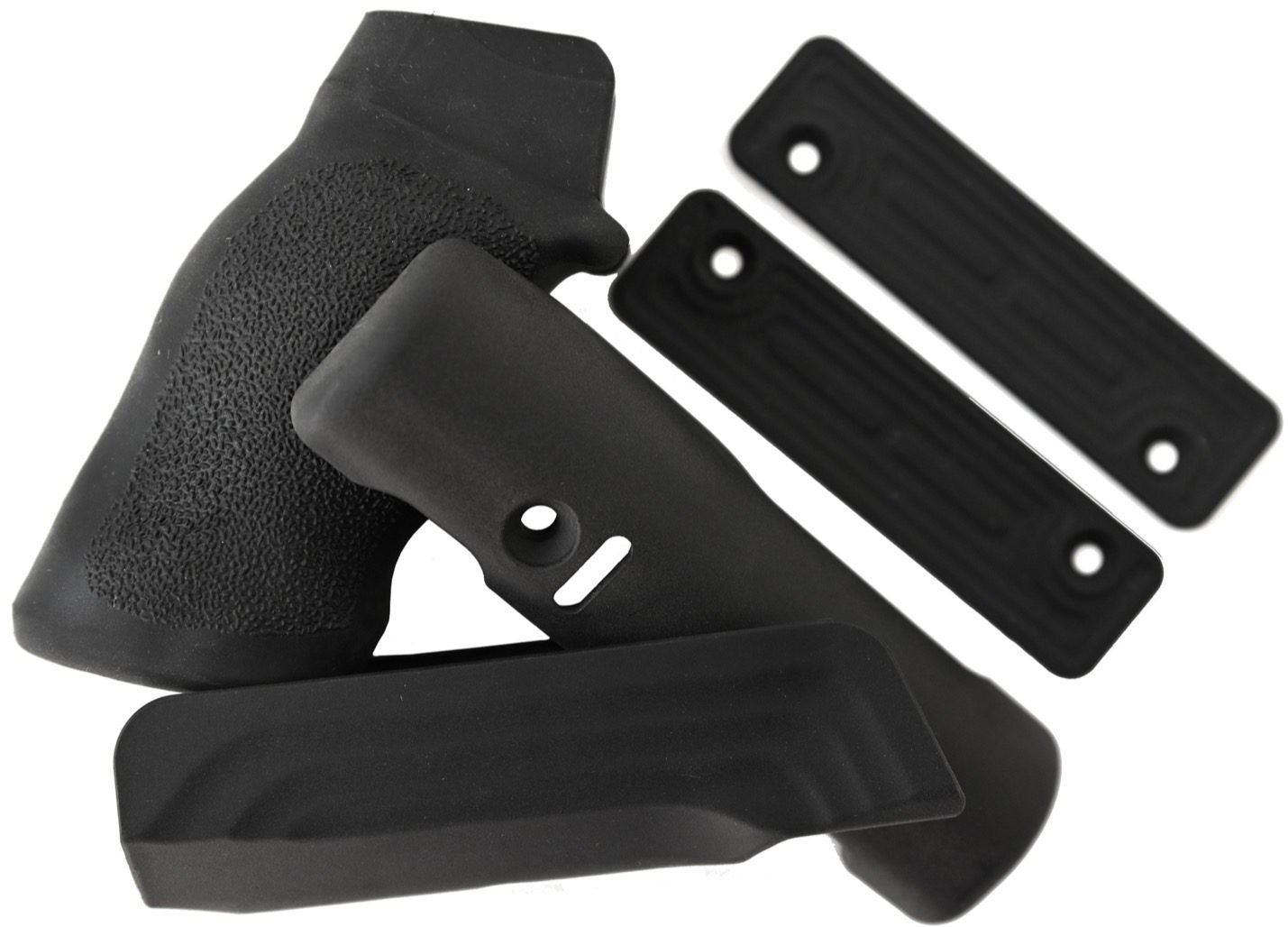

The central part of ACSR700 is machined out of 6082 T6 aluminium billet and has a black hard coat anodized finish and features QD sling swivels sockets on both sides above the pistol grip. The fittings (grip, central part cover, cheek piece, buttstock side panels) are optionally made of walnut wood, polymer (synthetic) or composites (carbon).

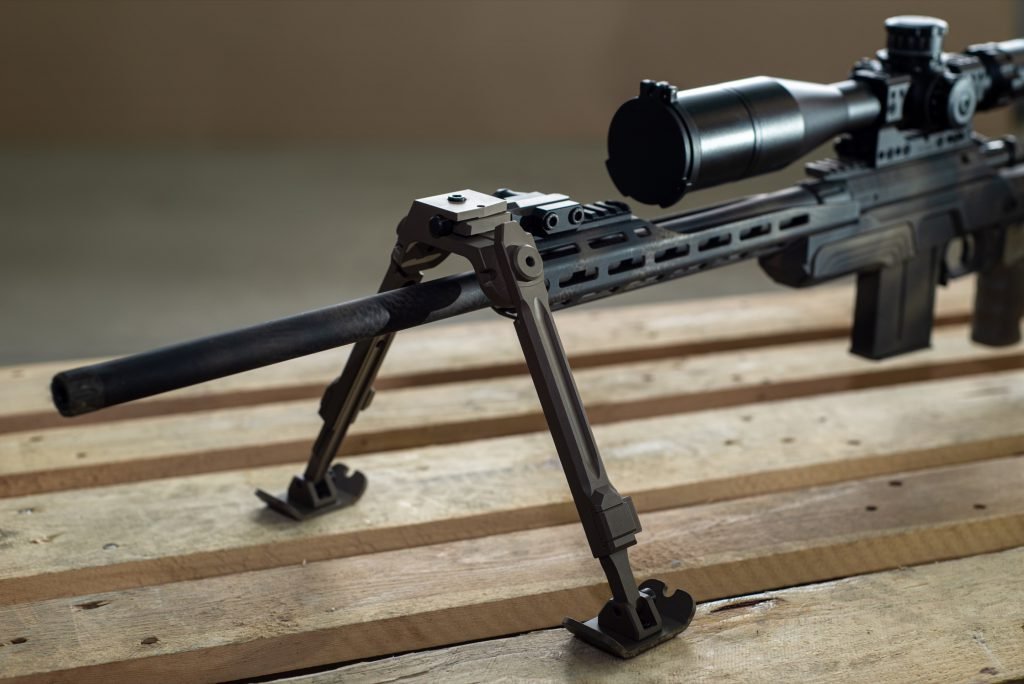

Either of the two available foreends is a separate piece attached to the chassis. M-LOK Foreend Lite was made with maximum functionality and weight optimisation and features M-LOK™ interface on all 8 sides while ARCA Foreend on 6 sides as well as a full length ARCA rail on the 6 o’clock. Both foreends feature QD sling swivel sockets at the very front, at 3 and 9 o’clock.

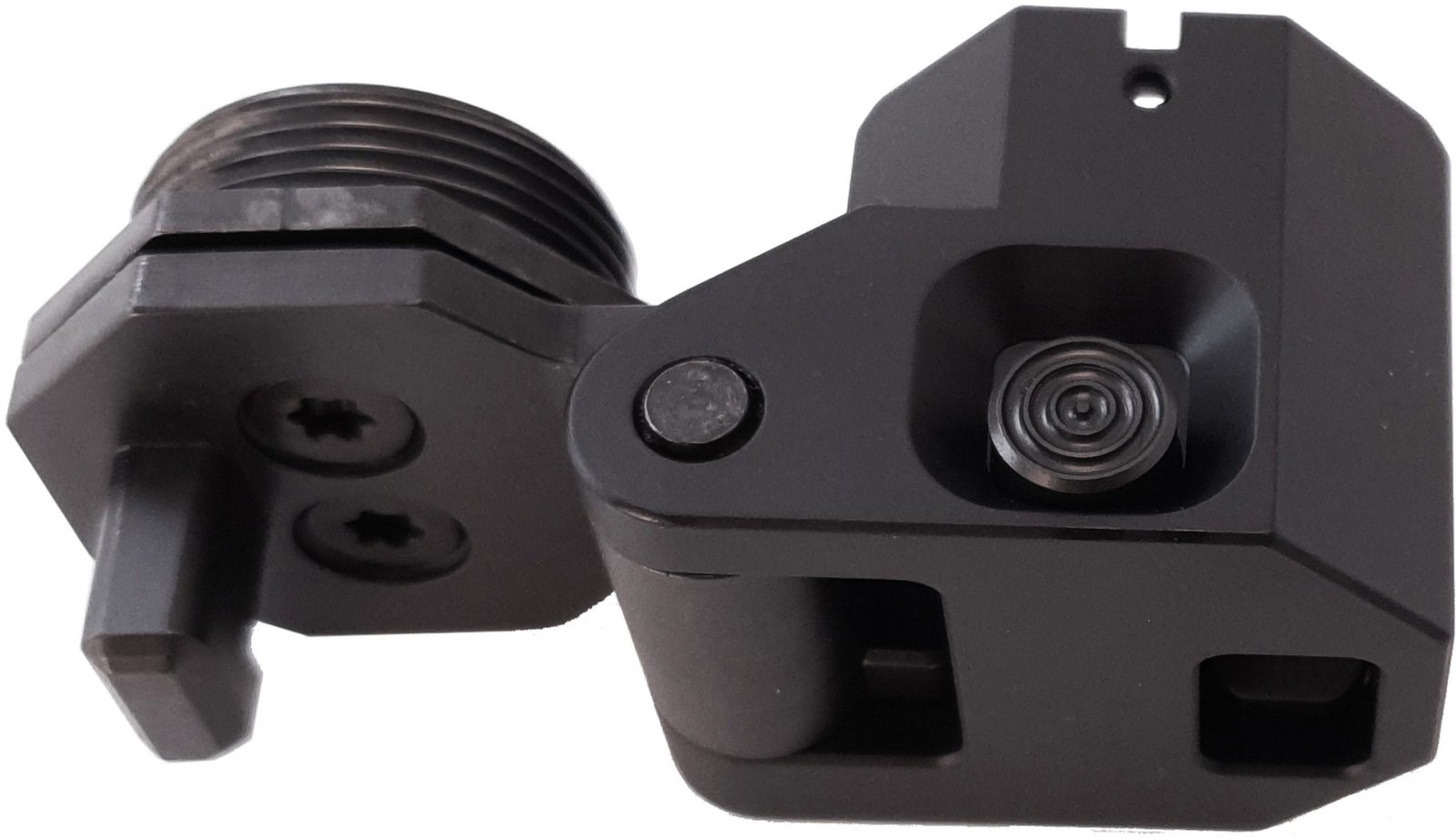

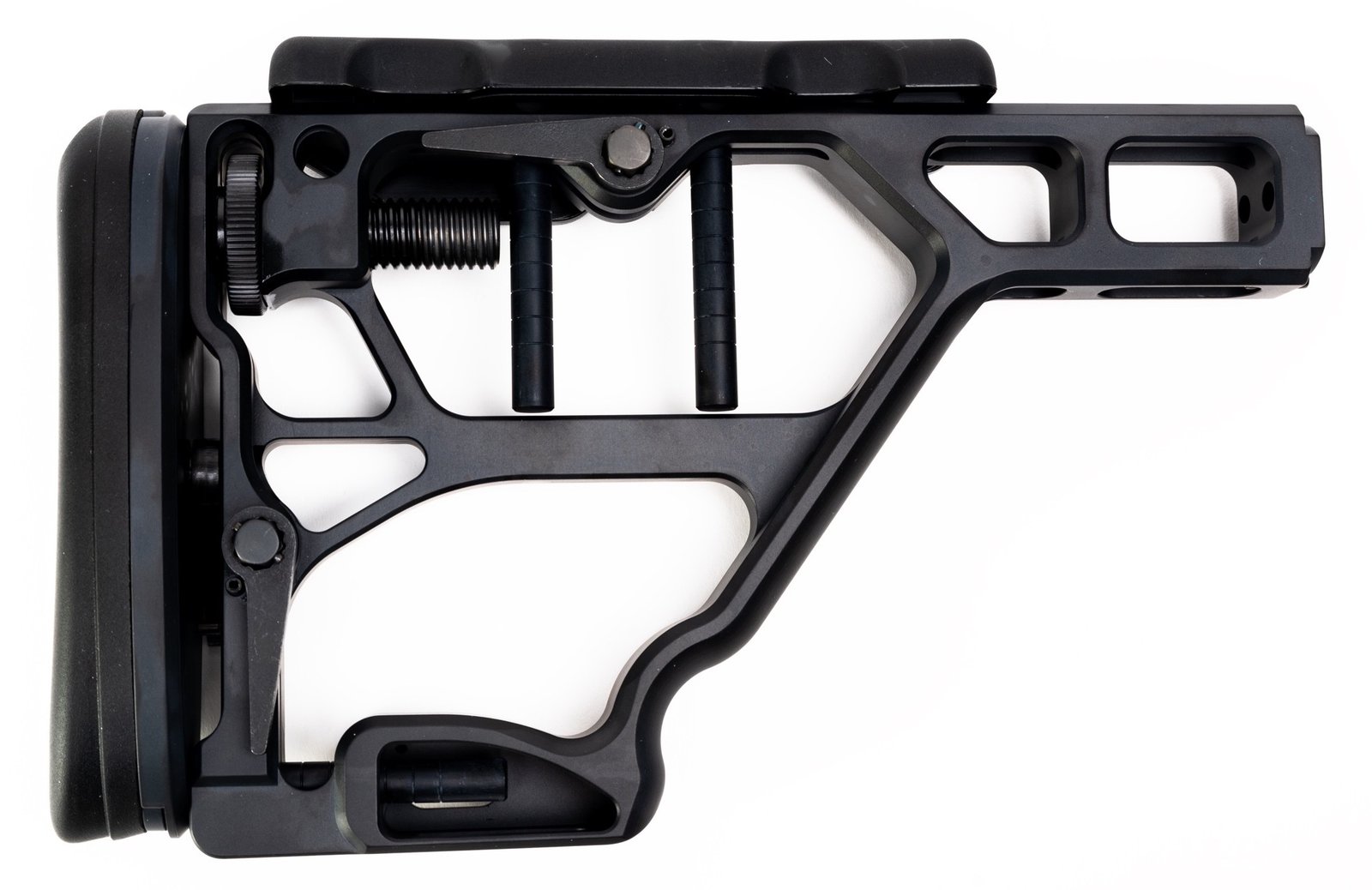

Both AKILA buttstocks are machined out of 7075 T651 aluminium billets and have a black hard coat anodized finish and features QD sling swivels sockets on both sides. Both buttstocks offer a possibility to adjust the cheek piece height and side, the length of pull, recoil pad height. Besides that Buttstock M features a built-in quick deployable and fine adjustable monopod and buttstock Lite has one MLOK™ slot to mount a monopod or a custom bag rider. The buttstock mounting point of the AKILA chassis is compatible with AR-15 receiver extensions, which will allow installing AR butt stocks. The buttstock folding can be user configured and folds to left or right sides of the chassis.
You can use the configurator to choose optional foreend and buttstock features. AKILA products are machined from high-grade aluminium and have a black hard coat anodized finish. All steel parts have special surface treatment that increases surface hardness, ensures improved wear and corrosion resistance. Only stainless steel screws are used in our products, to match the black colour we have treated these with special black bluing.
