Our engineers have set the next standard for magnification, imaging performance and mechanical precision. With its 8−40x magnification and unsurpassed resolution, this optic transcends anything you’ve ever seen before.
With an elevation adjustment range of 28mils and a field of view of 4.6m/100m — 1.0m/100m at 40x magnification, you’ll have a substantial image to keep your target in view.

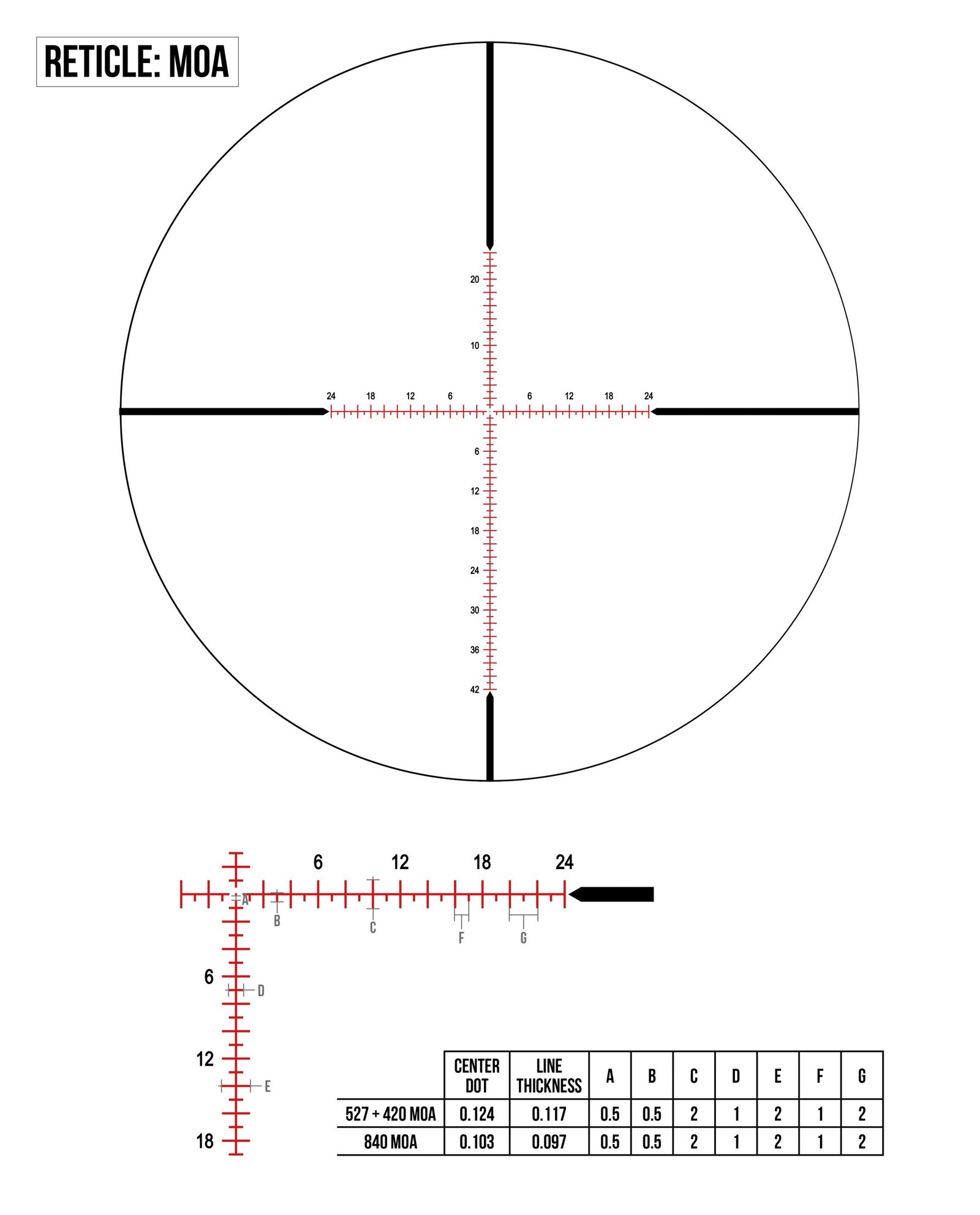

Our Minute of Angle (MOA) reticle design is a normal crosshair style graduated with one MOA increments for a straightforward and
clean appearance. This design was specifically developed for shooters competing in all different shooting aspects from F-Class
and Extreme Long Range to open country big-game hunting.
Along the horizontal, every even number MOA hash mark is longer than the rest extending above and below the horizontal crosshair
while the odd number MOA increments only extend a short distance below. This simple arrangement allows you to keep track
of your wind hold very easily. Holding between hash marks for every half MOA is extremely simple and keeps the reticle design
as uncluttered as possible yet highly effective.
The vertical crosshair extends down to 42 MOA for those ELR type shots that need that much elevation hold in combination with
the turret adjustment. Again, the even number hash marks are longer than the rest and extend left and right of the vertical by one
MOA to each side. The odd MOA increments are shorter and only extend one-half MOA to each side. This keeps the increments
easy to distinguish allowing you to easily find the correct hold point while providing a visually «balanced» reticle design.
Our floating dot is sized at 0.124 MOA diameter for an ultra precise hold on the target. Wind and elevation hold numbers are given
every 6 MOA to reduce clutter while still providing rapid counting when needed.
This new design from ZCO will appeal to an extremely wide audience of shooters around the world for its simplicity, clean look,
yet versatile capability.

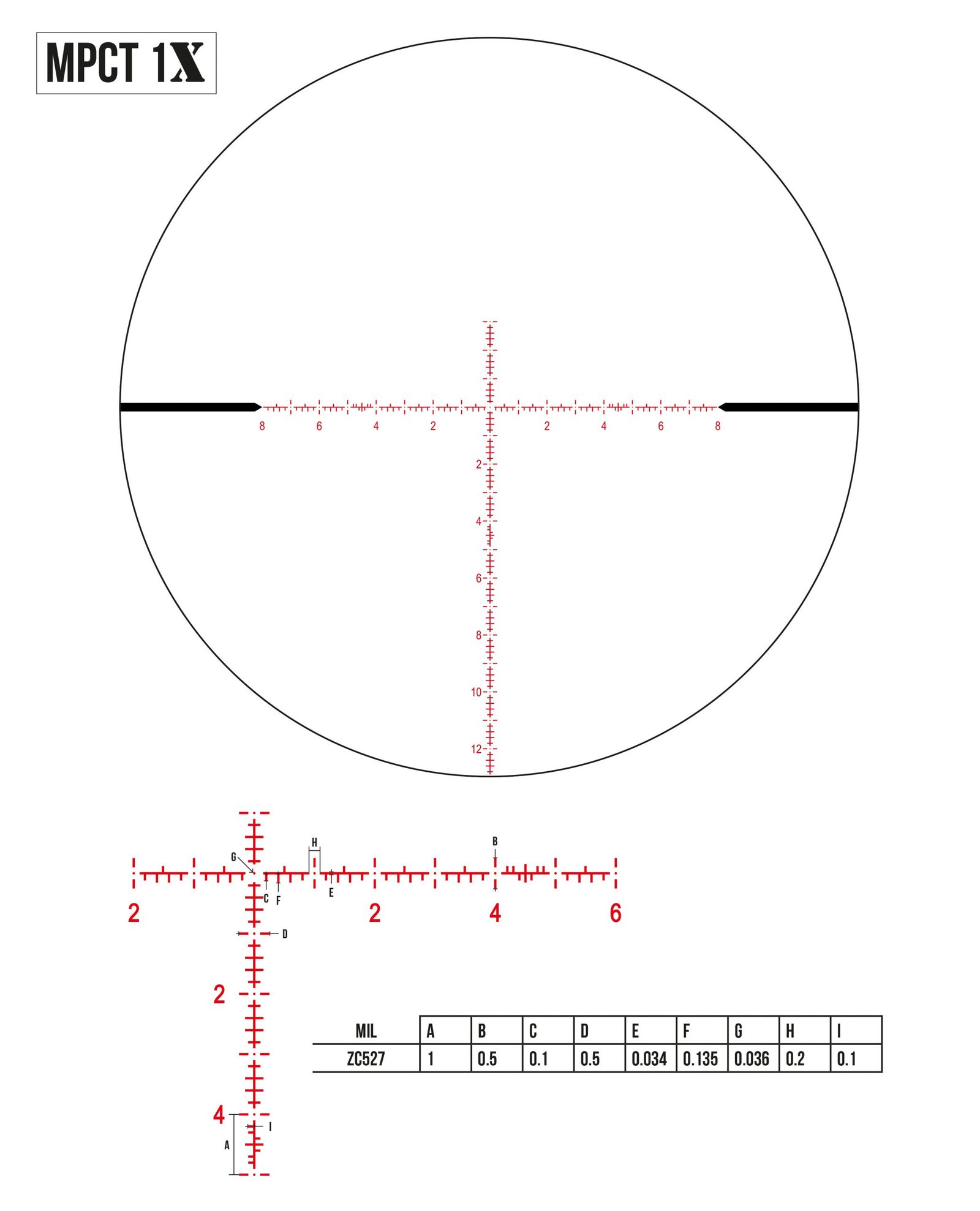

The MPCT1X reticle features an open concept design above the primary horizontal crosshair as well as other enhancements
to make this reticle extremely easy to use. The upper half of the reticle has the vertical crosshair only extend
up to 3.0 Mils which provides sufficient hold-under capability and maintain a clear view for spotting trace as the bullet
tracks toward the target. The open concept above the horizontal crosshair also allows for easier spotting for other
shooters in the field.
This reticle design features 0.2 Mil indications throughout the vertical and horizontal crosshairs. We have included
floating dots at every whole mil point to assist both visually identifying these points as well as enhance the precision
of aiming on target.
Along the bottom edge of the primary horizontal crosshair we have 0.2 Mil hash marks that are visually distinguished by line lengths. The shorter lengths are at 0.2 and 0.8 Mil while the 0.4 and 0.6 Mil marks are slightly longer. This aids in rapid identification of these different hold points. Along the top edge we have a single hash mark at the 0.5 Mil location
making this a very fast hold point to acquire.
The MPCT1X reticle is the most modern reticle design on the market featuring easily distinguished hold points. The features
of this reticle make it extremely intuitive and fast to use in the field under a multitude of shooting scenarios.

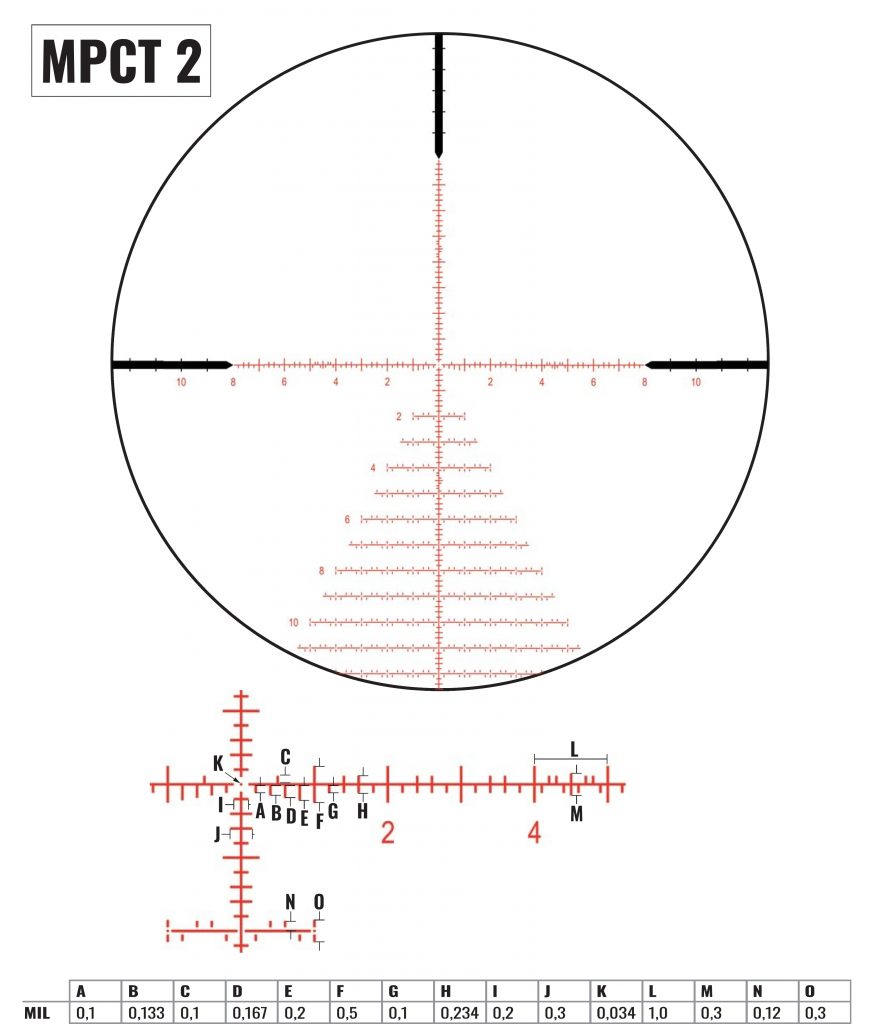

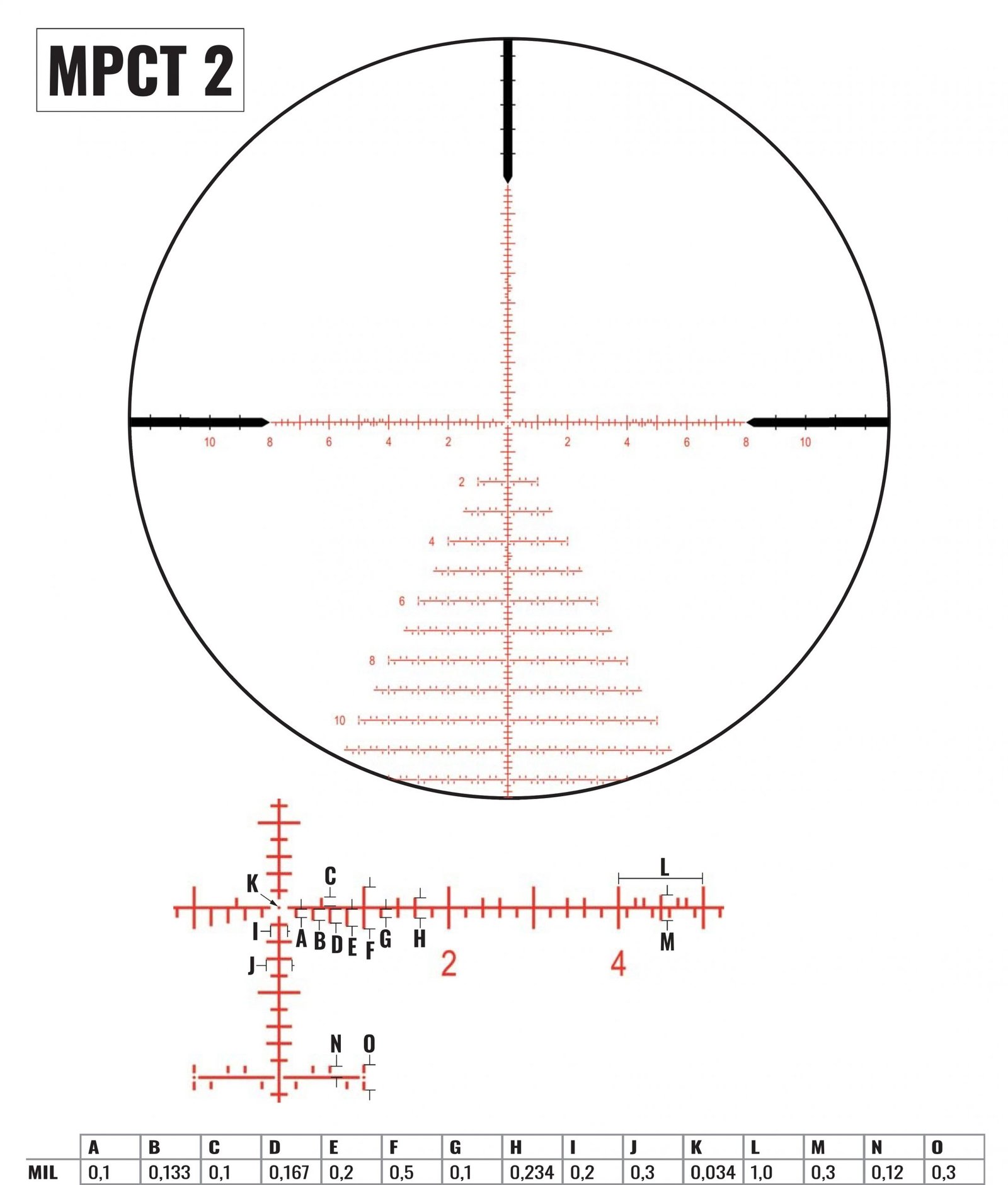

MPCT2

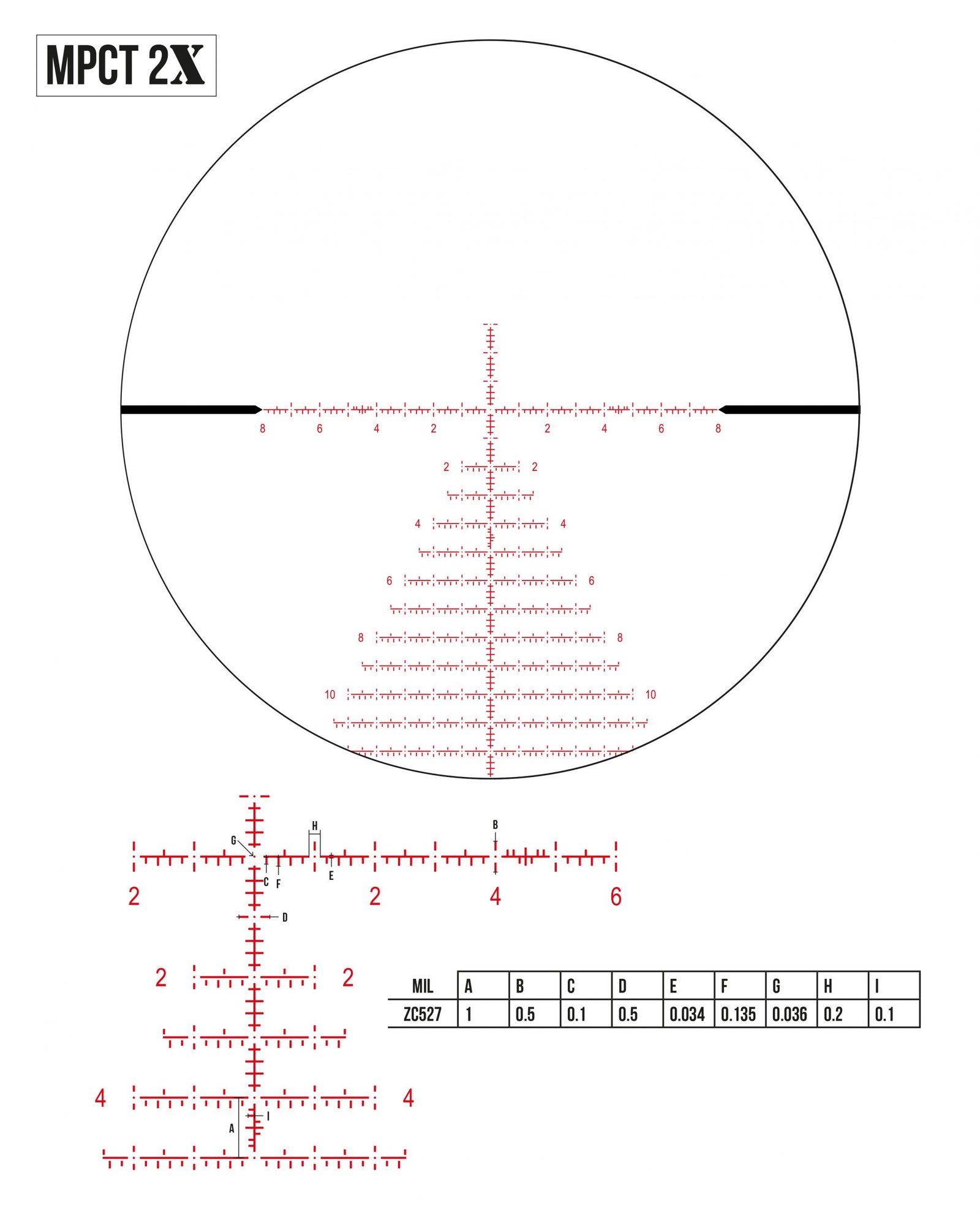

The MPCT2X reticle features an open concept design above the primary horizontal crosshair as well as other enhancements
to make this minimal tree style reticle extremely easy to use. The upper half of the reticle has the vertical crosshair
only extend up to 3.0 Mils which provides sufficient hold-under capability and maintain a clear view for spotting
trace as the bullet tracks toward the target. The open concept above the horizontal crosshair also allows for easier
spotting for other shooters in the field.
This reticle design features 0.2 Mil indications throughout the vertical, horizontal, and tree portions of the reticle. We have included floating dots at every whole mil point to assist both visually identifying these points as well as enhance
the precision of aiming on target.
Along the bottom edge of all horizontal portions of the reticle we have 0.2 Mil hash marks that are visually distinguished
by line lengths. The shorter lengths are at 0.2 and 0.8 Mil while the 0.4 and 0.6 Mil marks are slightly longer. This aids
in rapid identification of these different hold points. Along the top edges we have a single hash mark at the 0.5 Mil
location making this a very fast hold point to acquire anywhere in the reticle.
The MPCT2X reticle is the most modern reticle design on the market featuring easily distinguished hold points. The features
of this reticle make it extremely intuitive and fast to use in the field under a multitude of shooting scenarios.

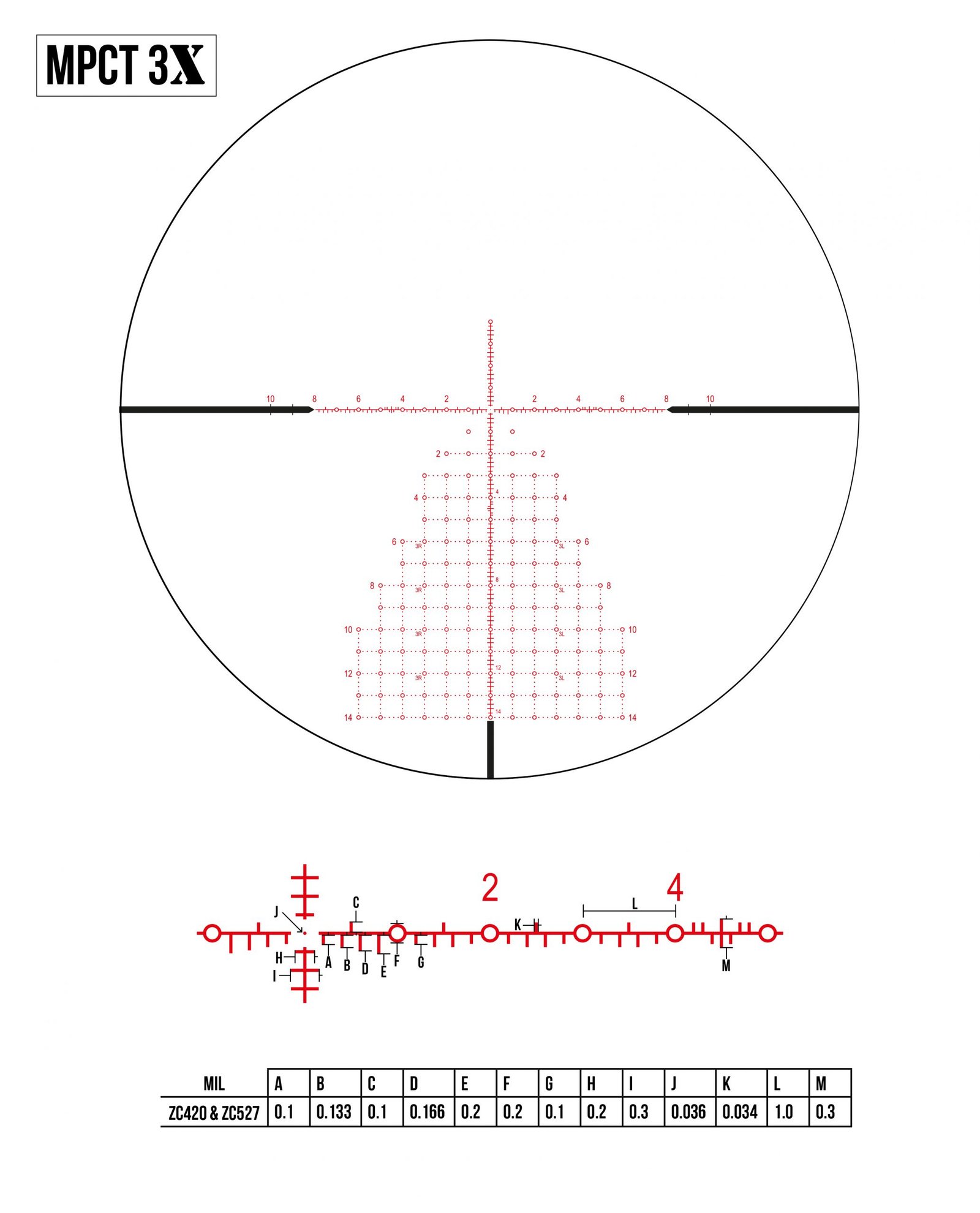

The MPCT3X features an open concept design above the primary horizontal crosshair and a minimally sized dot-style holdover tree
below. This design features 0.2 Mil diameter open circles at all whole Mil values making holds easier to identify rapidly and while
using the scope at a reduced magnification setting. The tree portion of the reticle utilizes dots arranged in a grid pattern with 0.2
Mil spacing thus allowing greater precision with holding for elevation as well as wind.
The upper half of the field of view has the vertical crosshair extending up to 4.0 Mils. This maintains an open field of view in the
upper half of the reticle while providing enhanced hold-under capability or measurement for calling bullet trace. In practical application
with multiple targets at widely varying distances, shooters can now dial their elevation turret for an intermediate range
target and then hold under for the closer targets and hold over for the more distant targets.
Spotting for other shooters is also enhanced with less clutter above the primary horizontal crosshair.
The primary horizontal crosshair features 0.2 Mil references along the bottom edge that provide a visual distinction between the
0.2, 0.4, 0.6, and 0.8 Mil marks making those hold points rapidly identified. We’ve also included a single tick mark along the top
edge of the horizontal at every 0.5 Mil location for those shooters preferring to have that value available.
Additional points:
1. The tree is only as large as absolutely necessary to hold for a 308 Winchester shooting the 175 SMK at 2650 ft/sec. under
standard
atmospheric conditions with a 20-mph full value wind. All other modern cartridges under vastly different atmospheric
conditions should easily remain within this grid.
2. Reference numbers for wind holds are included at 3R and 3L locations indicating a wind hold of that amount. This highly
negates counting of dots and circles to locate the correct hold point under stress or time limits.
3. The even elevation numbers are located on both left and right sides of the tree making counting much easier. Numbers are
reduced in size along the primary vertical down the tree for enhance visibility and only at the 4, 8, 12, and 14 Mil locations to reduce clutter in the FOV.
4. The MPCT3X is the ultimate reticle for speed and highest precision at the same time! It is fully functional across the entire
magnification range and features design aspects never before implemented into a single reticle.

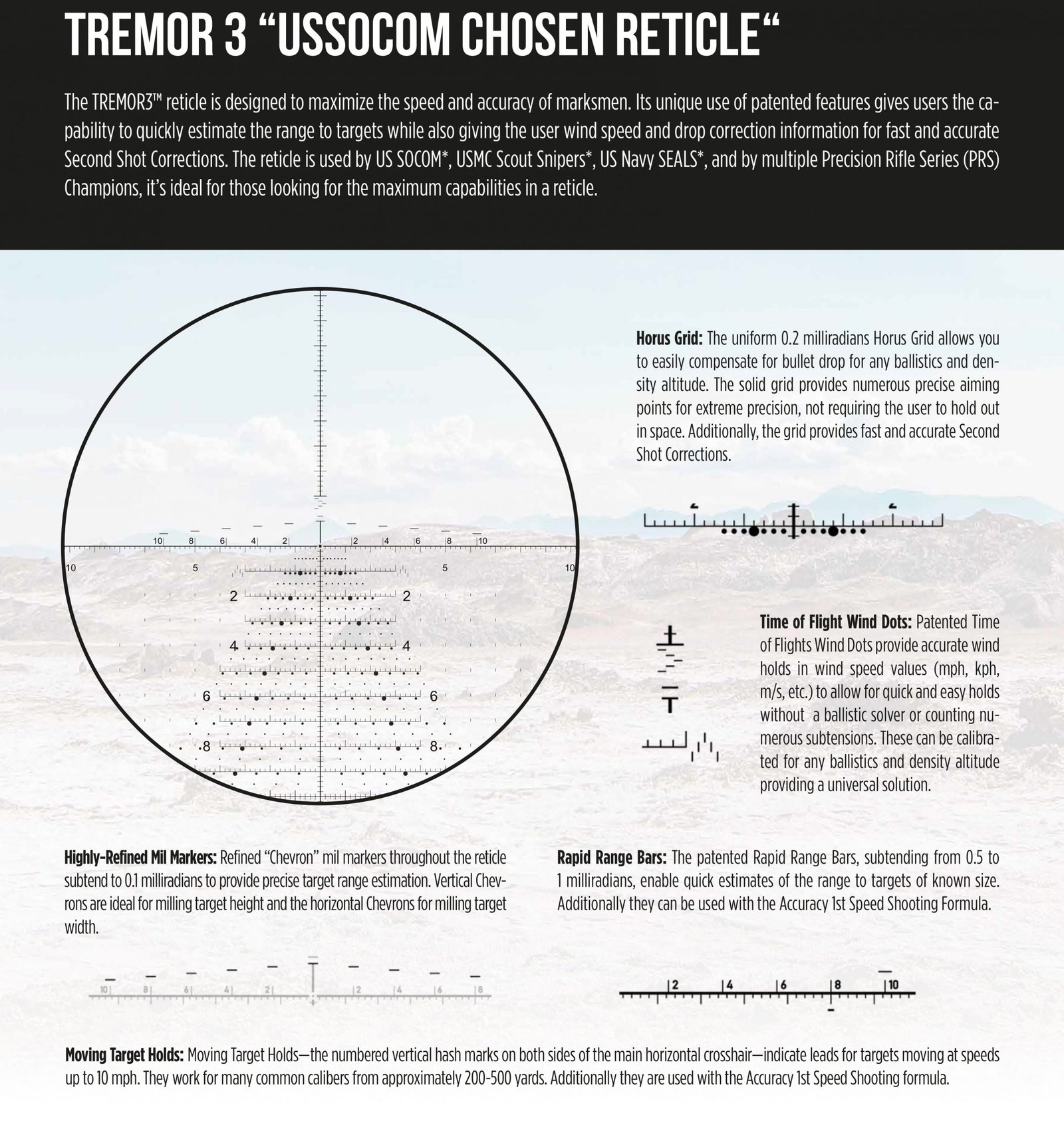

Tremor3

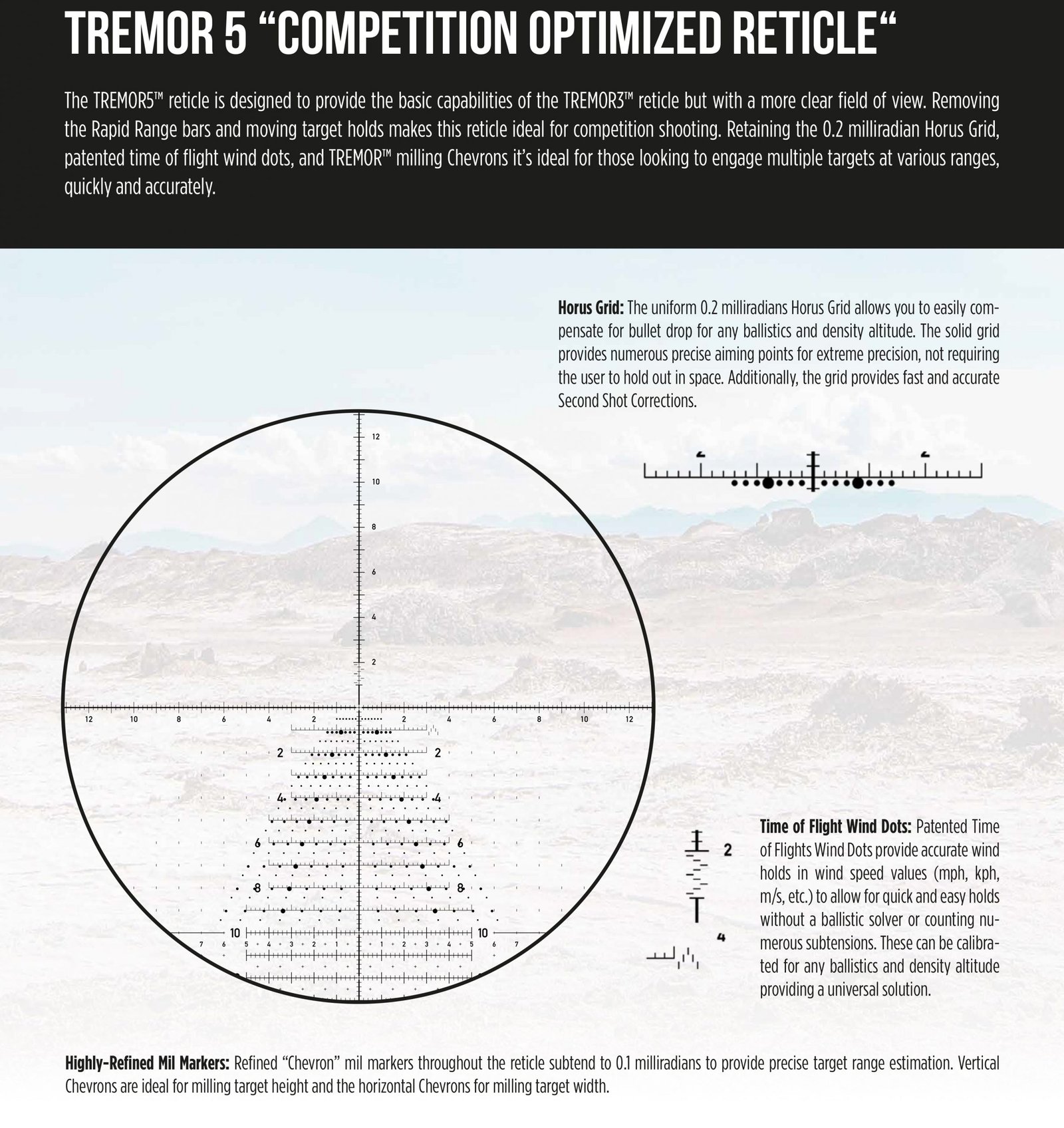

Tremor5

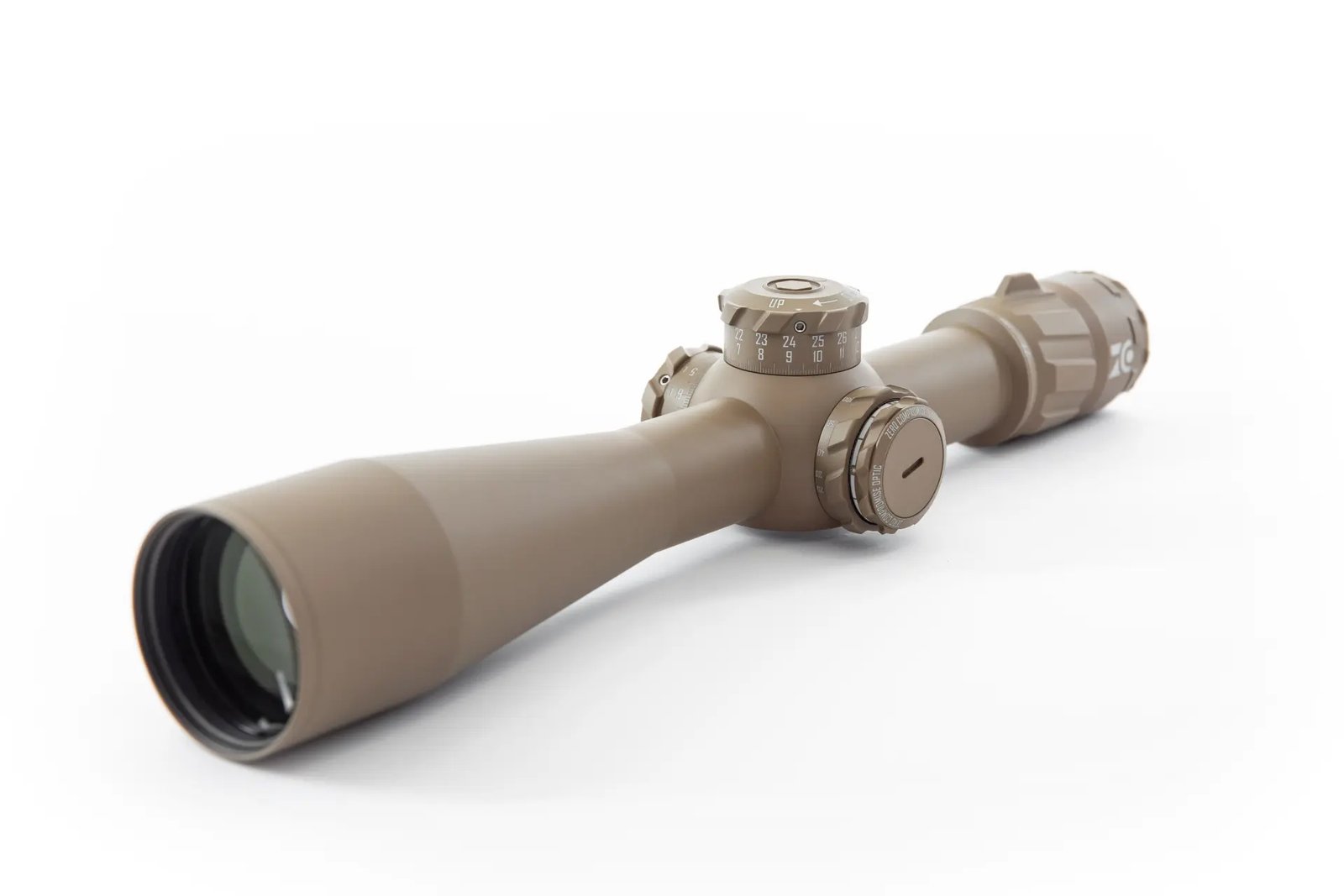

FDE
