ACSR8C Excelsior pro

Description

ACSR8C Excelsior is a carbon fibre stock with folding stock and adjustable Buttstock suitable for Blaser’s bolt action rifle R8 — right hand version.

Higher stock rigidity and superior stiffness significantly improves shooting performance especially with Semi Weight and Match barrels. Adjustable cheek rest comfortably aligns the line of sight with optic scopes, thermal and night vision devises. The pistol grip provides superior rifle control for firing also in prone position. The buttstock be fold to right sides of the chassis.

Minimum weight — 1350 grams.

The ACSR8C Excelsior chassis comes with the system. It is a drop in upgrade stock, this means that you would require the following parts to complete the rifle: barrel, bolt with bolt head and magazine (Success magazine version fit the ACSR8C Excelsior).

Chassis is suitable for Blaser’s barrel contours and Blaser’s integral silincer.

AKILA proprietary single stage sear block allows you to adjust the trigger’s pull-weight in the range of 200—800 grams.

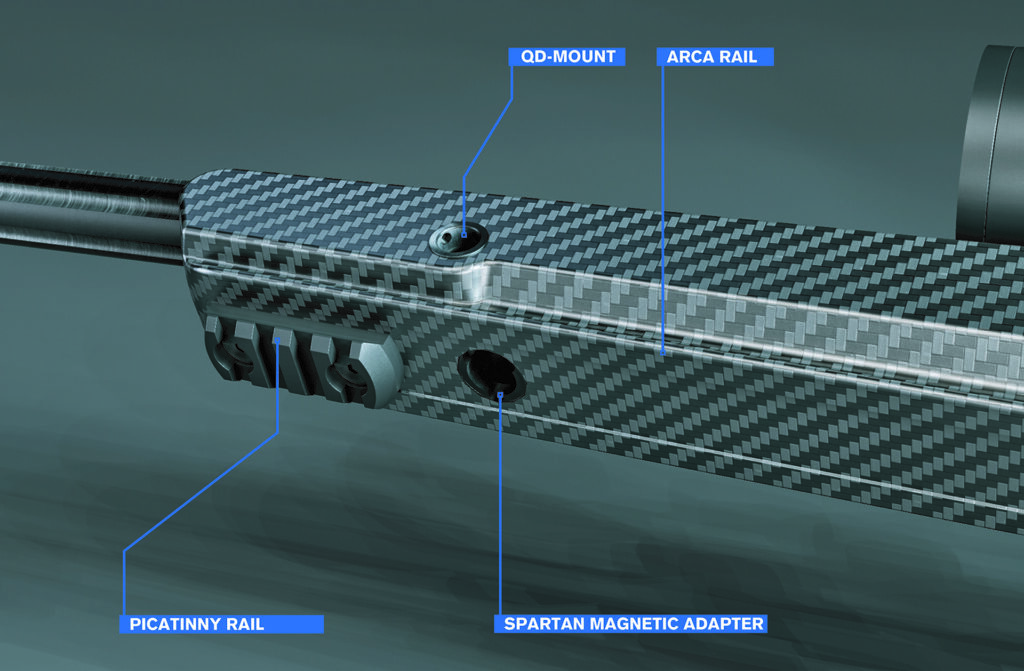

Alternative stock features:

Quick detach sling socket QD Mount

Spartan Precision magnetic adapter for bipods/tripods.

Short picatinny rail.

Height adjustments of recoil pad

The system part of ACSR8C Excelsior is machined out of 7075 T6 aluminium billet and has a black hard coat anodized finish. The exterior of the stock is optionally made of conventional composite carbon or with Camo texture.

Exterior

Camo

Camo texture

Exterior

Standard

Standard texture

Barrel profile

22 mm Universal contour

19 mm Semi-weight / 22 mm Match / Sendero Light (Proof Research)

Bipod attachments

Picatinny rail with harris stud

Picatinny rail with harris stud

Bipod attachments

Spartan adapter

Compatible with Javelin Bipods, Davros, Sentinel and Ascent tripods

CNC machined from 7075-T7351 aluminium billet with a hard-anodised black finish

Enables use of Javelin Bipod in fixed target and traversable hunting modes

Folding Unit

Right side

You can add unique functionality to your stock by choosing Folding Unit, you can choose which side to fold the buttstock. It is so natural to change your mind or want to adapt the rifle to a new environment or accessories, so we made the folding side user-configurable, within a couple of minutes you can reverse the folding side. The folding unit features mechanical locking in folded position, so once folded you do not need to worry, that the buttstock will get loose during handling.

Folding Unit

Spacer

Should you decide that folding is something you do not need, in this case we can offer a special spacer to compensate the length of the folding unit without compromising the rigidity. It is also possible to fix the buttstock directly into the chassis. The length of pull adjustment in both AKILA buttstocks can compensate up to 35 mm of length.

Recoil pad adjustment

Height

Recoil pad height adjustment was designed specially for carbon stocks ACSR80, ACSR82 and ACST30.

Length (vertical) adjustments of +25/-25 mm; +1″/-1″. Pitch: 5 mm; .2″.

Weight: 130 g; 4.6 oz.

Recoil pad adjustment

Length and Height

Recoil pad height and length adjustment was designed specially for carbon stocks ACSR80 and ACST30.

Length (horizontal) adjustments of 0 / +30mm; 0/+1.2″;

Height (vertical) adjustments of +25/-25 mm; +1″/-1″;

Pitch: 5 mm; .2″;

Weight: 300 g; 10.6 oz.

Weight	1350—1685 g (2.7—3.37 lb)
Cheek piece height adjustment	30 mm
Length of pull adjustment	30 mm
Recoil pad height adjustment	± 30 mm
Suitable rifle models	Blaser’s R8 rifle

ACSR8C Excelsior pro
