ACSR8 mk.2

Description

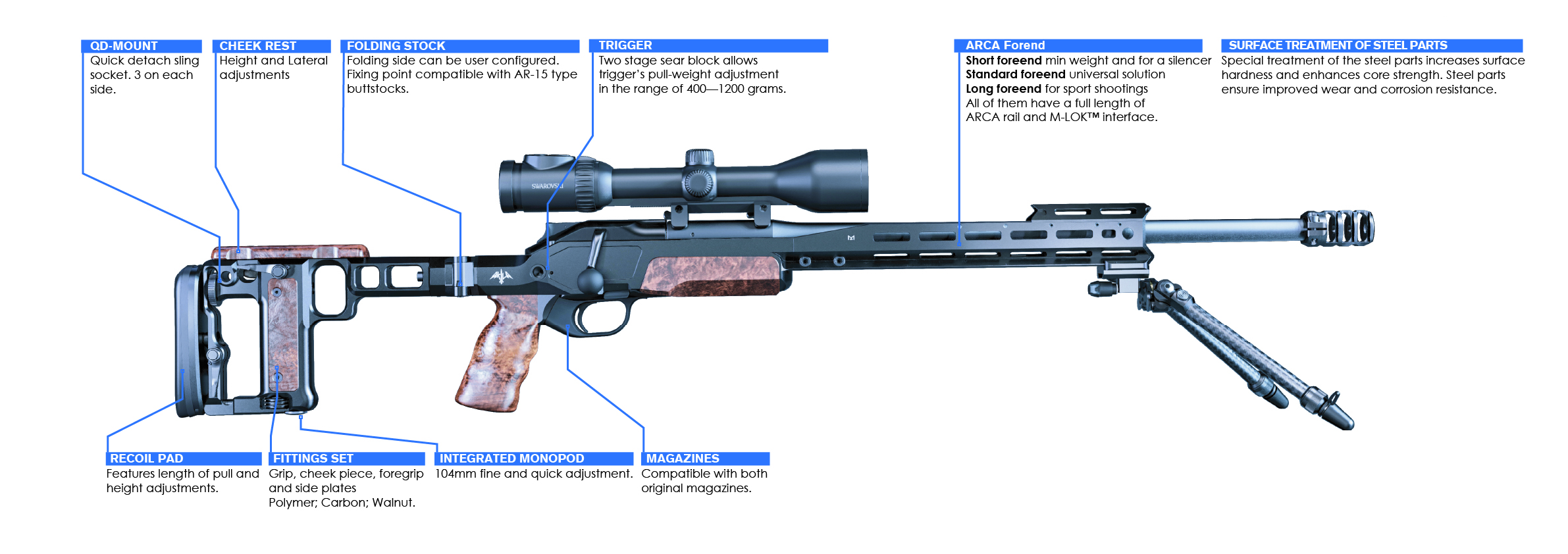

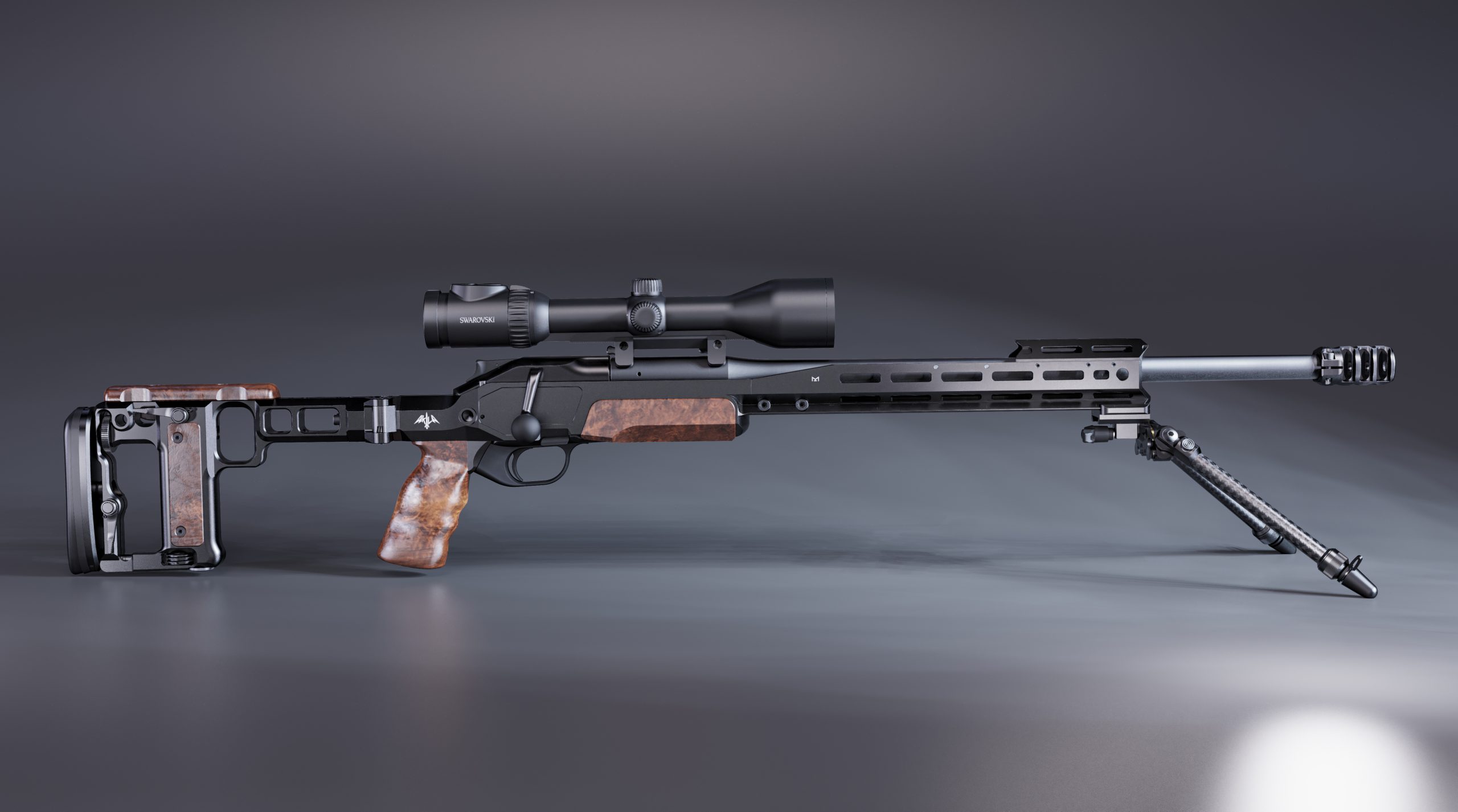

ACSR8 mk.2 is suitable for all versions and models of Blaser’s bolt action rifles R8. Left-handed and right-handed versions all makes and models. It is a drop in upgrade chassis, this means that you would require the following parts to complete the rifle: barrel, bolt with bolt head, fire control unit (both magazine versions fit the ACSR8 mk.2)

Two stage sear block allows you to adjust the trigger’s pullweight in the range 400—1200 grams.

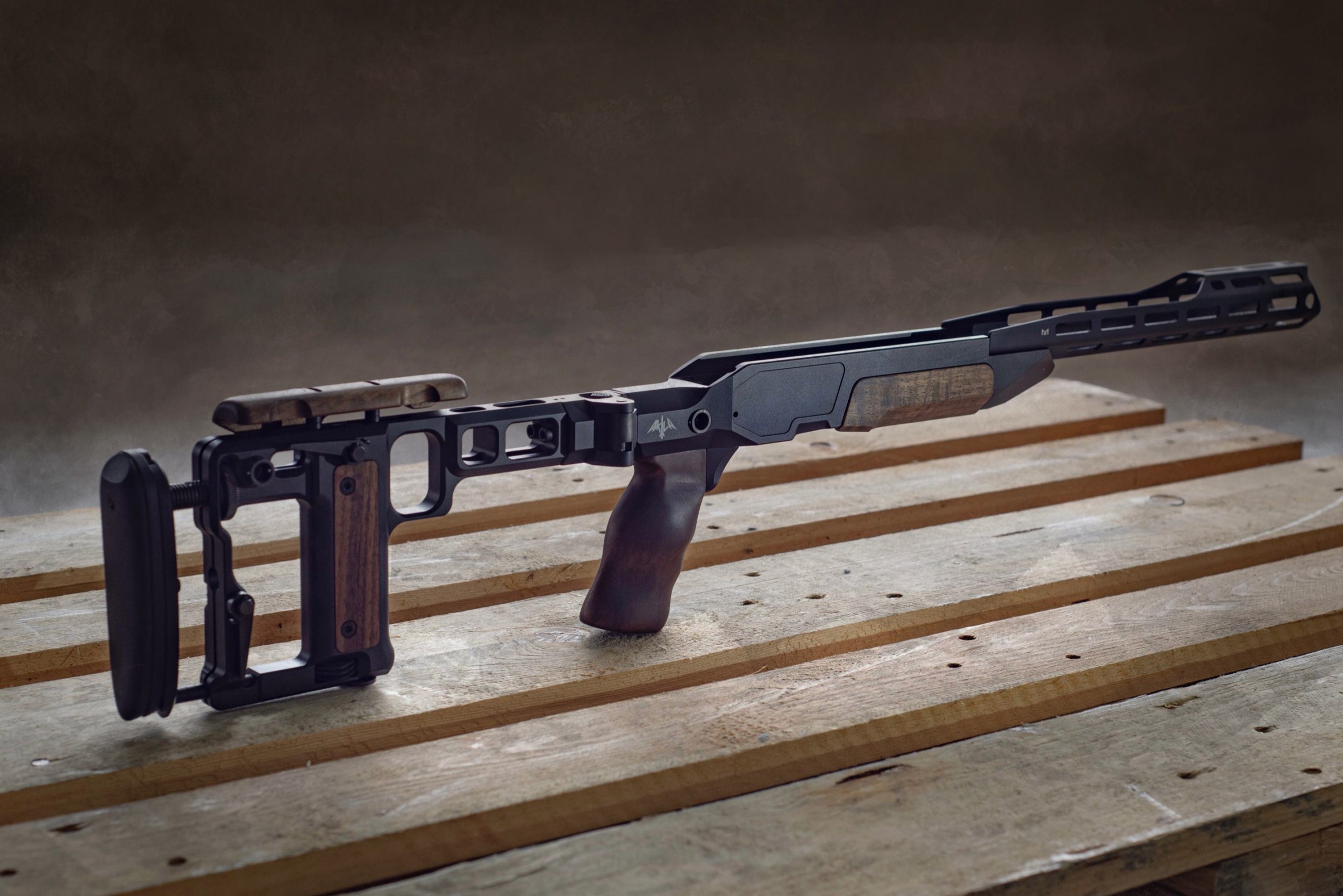

The chassis of ACSR8 mk.2 is machined out of 7075 T6 aluminium billet and has a black hard coat anodized finish and features QD sling swivels sockets on both sides above the pistol grip. The fittings (grip, central part cover, cheek piece, buttstock side panels) are optionally made of walnut wood, polymer (synthetic) or composites (carbon).

Either of the two available foreends is a separate piece attached to the chassis. Handguard Lite was made with maximum functionality and weight optimisation and features M-LOK™ interface on all 8 sides while Handguard M on 6 sides as well as ARCA rail on the 6 o’clock. Both foreends feature QD sling swivel sockets at the very front, at 3 and 9 o’clock.

Both AKILA buttstocks are machined out of 7075 T651 aluminium billets and have a black hard coat anodized finish and features QD sling swivels sockets on both sides. Both buttstocks offer a possibility to adjust the cheek piece height and side, the length of pull, recoil pad height. Besides that Buttstock M features a built-in quick deployable and fine adjustable monopod and buttstock Lite has one MLOK™ slot to mount a monopod or a custom bag rider. The buttstock mounting point of the AKILA chassis is compatible with AR-15 receiver extensions, which will allow installing AR butt stocks. The buttstock folding can be user configured and folds to left or right sides of the chassis.

The video manual for assembling the chassis at the link: https://akila.ltd/downloads/

Decorative Panels

Carbon

Black carbon based composite fittings set will add some modern flare to your rifle.

Decorative Panels

Polymer

Polymer accents fittings are made from firearms grade black POM material. A rubberized grip produced by Ergo Grips is available in two models:

Ergo flat top tactical deluxe grip — Suregrip® (Default)
Ergo TDX-0™: Tactical deluxe zero angle Suregrip®

Decorative Panels

Walnut

Walnut wood accent fittings are made from high grade walnut with oil finish. (Weight can slightly wary based on wood density).

Buttstock

Buttstock Lite

Should you prefer a buttstock without monopod and at the same time you would like to save some weight without compromises in functionality AKILA Buttstock Lite is the best choice. The skeletonized design maintained outstanding rigidity and all the adjustments that the Buttstock M has in a lighter body. Besides that Buttstock Lite feature M-LOK™ slot on the bottom rail so you can attach a custom bag rider or a monopod.

Buttstock

Buttstock M

You can use the configurator to choose optional buttstock features. Both buttstocks are milled from 7075 T651 aluminium billets and have black hard coat anodized finish. The buttstock mounting point of the AKILA chassis and the folding unit are compatible with AR-15 receiver extensions, which will allow installing AR butt stocks. Buttstock M offers the possibility to adjust the cheek piece height and side, the length of pull, recoil pad height. Besides that Buttstock M features a built-in quick deployable and fine adjustable monopod.

Folding Unit

Left side

You can add unique functionality to your stock by choosing Folding Unit, you can choose which side to fold the buttstock. It is so natural to change your mind or want to adapt the rifle to a new environment or accessories, so we made the folding side user-configurable, within a couple of minutes you can reverse the folding side. The folding unit features mechanical locking in folded position, so once folded you do not need to worry, that the buttstock will get loose during handling.

Folding Unit

Right side

Folding Unit

Spacer

Should you decide that folding is something you do not need, in this case we can offer a special spacer to compensate the length of the folding unit without compromising the rigidity. It is also possible to fix the buttstock directly into the chassis. The length of pull adjustment in both AKILA buttstocks can compensate up to 35 mm of length.

Forend

ARCA Foreend

ARCA Foreend is a fully milled out of a 7075 T651 aluminium billet and has a black hard coat anodized finish. Handguard M is supplied with a take down upper bridge for top mounted accessories. The upper bridge is easily removed and can be installed in different positions to ensure optional distance between the scope and the front mounted accessories. The six sides of the foreend feature M-LOK™ mounting interface and QD sling swivel sockets at the very front, at 3 and 9 o’clock. The 6 o’clock side features a full length ARCA Swiss rail.

Forend

Foreend lite

Foreend Lite is machined out of 6061 T6 aluminium and has a black hard coat anodized finish. Foreend Lite was designed to optimise weight while maintaining rigidity and functionality. Foreend Lite features M-LOK™ interface on all 8 sides and QD sling swivel sockets at the very front, at 3 and 9 o’clock. Foreend Lite is a great fit for those who would prefer to lower the weight without compromising the functionality.

Foreend Lite Short available only when Foreend lite [FL] is selected.

AKILA Foreend Lite Short is machined out of 6061 T6 aluminium and has a black hard coat anodized finish. Foreend Lite Short was designed with minimum weight and optimized in length for a silencer. AKILA Foreend Lite Short features M-LOK™ interface on all 8 sides and QD sling swivel sockets at the very front, at 3 and 9 o’clock. AKILA Foreend Lite Short is a great fit for those who would prefer to lower the weight without compromising the functionality.

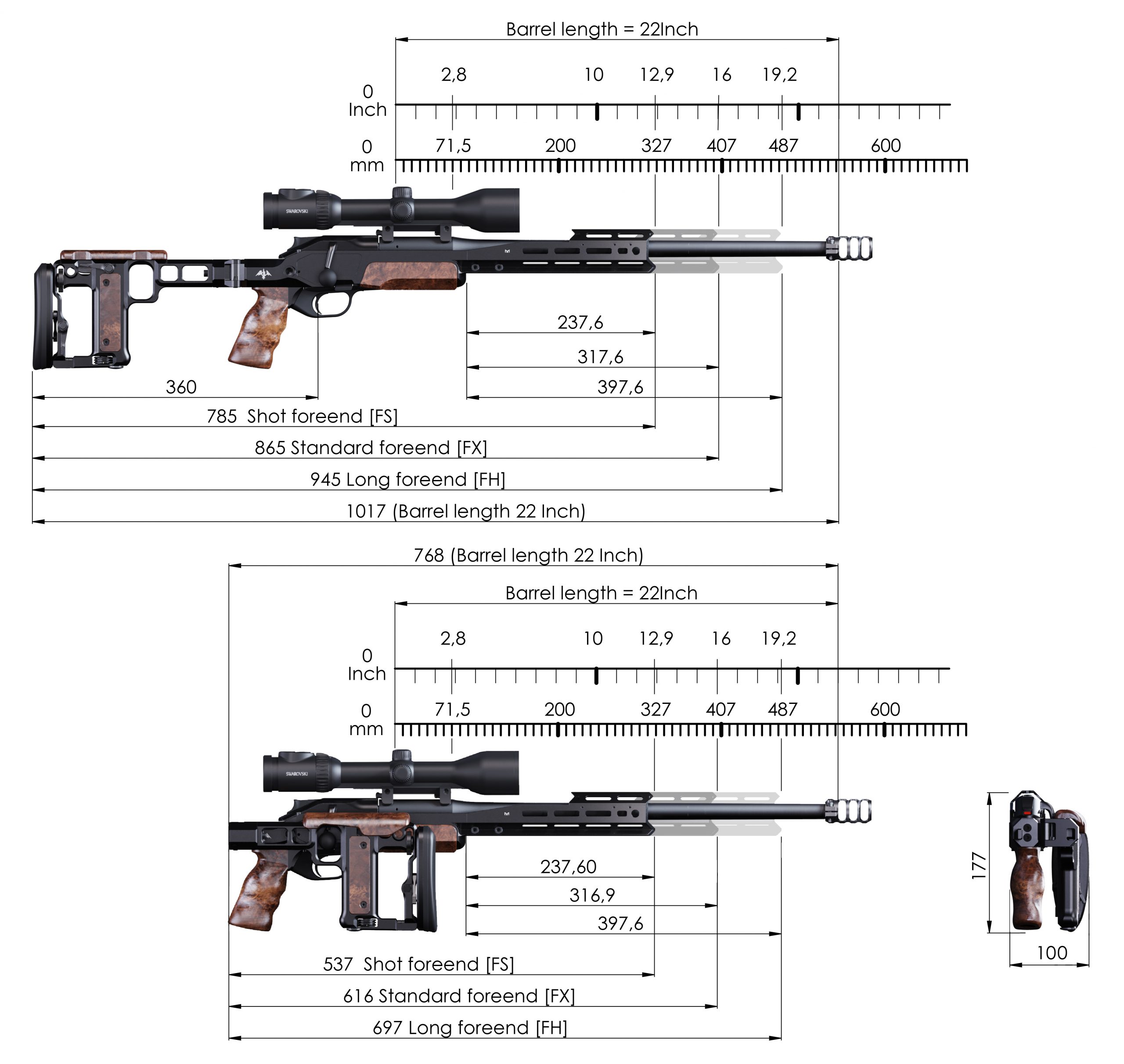

Weight	1746—2201 g (3.49—4.4 lb)
Cheek piece height adjustment	30 mm
Length of pull adjustment	30 mm
Recoil pad height adjustment	± 31 mm
Monopod adjustment	104 mm
Suitable rifle models	Blaser’s R8 rifle
Adjustable trigger’s pullweight	400—1200 grams
